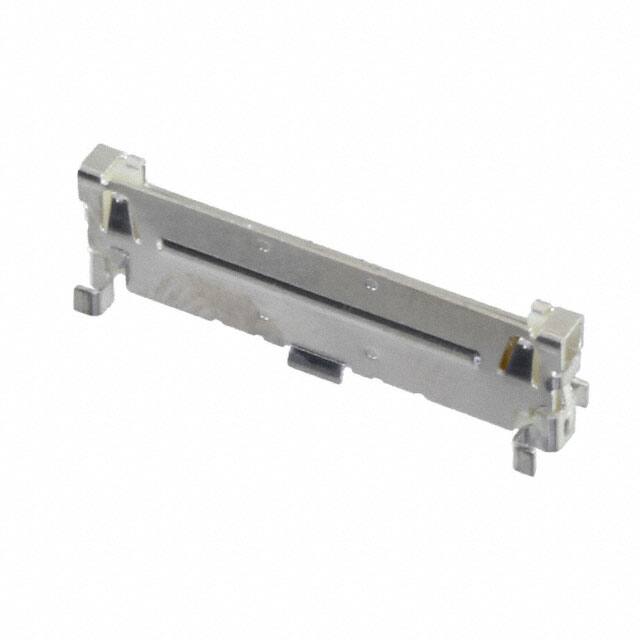

DF19-14P-1V(56)

Teknik Özellikler

Insulation Height

0.206 5.23mm

Kurşunsuz

Lead Free

Max Voltage Rating Ac

100V

Option

GENERAL PURPOSE

Pozisyon Sayısı

14

Housing Material

Polyamide

Housing Color

Beige

Terminal

Solder

Depth

3.8mm

Contact Materials

Phosphor Bronze

Connector Type

Receptacle

Stack Height Mating

7.7mm

Çalışma Sıcaklığı

-35°C~85°C

Filter Feature

NO

Sıra Sayısı

1

Shrouding

Shrouded - 4 Wall

Iec Conformance

NO

Contact Resistance

30mOhm

Contact Gender

FEMALE

Contact Finish Mating

Gold

Style

Board to Cable/Wire

Din Conformance

NO

Orientation

Straight

Insulation Materials

Polyamide (PA), Nylon

Ambalaj

Tape & Reel (TR)

Contact Finish Post

Tin-Copper

Max Current Rating

1A

Number Of Positions Loaded

All

Montaj Tipi

Surface Mount

Contact Type

Male Pin

Ul Flammability Code

94V-0

Total Number Of Contacts

14

Mil Conformance

NO

Pitch Mating

0.039 1.00mm

Parça Durumu

Active

Özellikler

Pick and Place, Solder Retention

Fastening Type

Friction Lock

Contact Finish Thickness Post

39.4μin 1.00μm

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant
