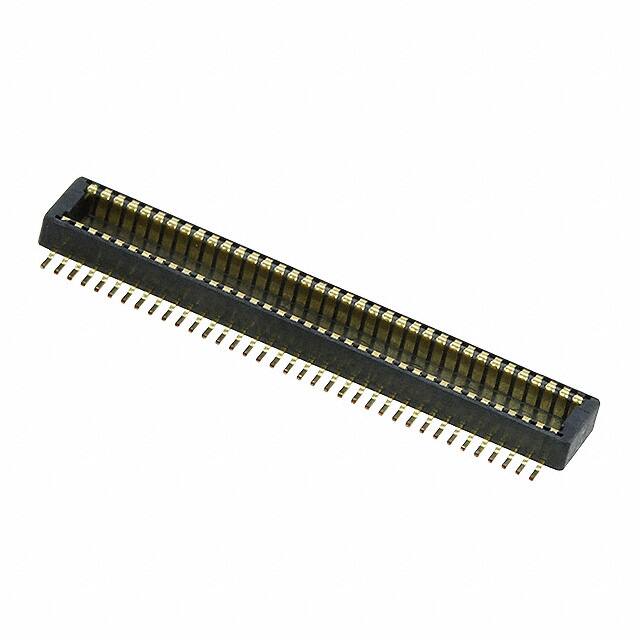

DF18C-70DP-0.4V(51)

Teknik Özellikler

Insulator Color

BLACK

Seri

DF18

REACH Uyumluluk Kodu

unknown

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

Montaj

Surface Mount

Contact Finish

Gold

Nominal Gerilim

30V

Number Of Pcb Rows

2

Mil Conformance

NO

Durability

50 Cycles

Parça Durumu

Obsolete

Min. Çalışma Sıcaklığı

-35°C

Number Of Conductors

ONE

Total Number Of Contacts

70

Montaj Tipi

Surface Mount

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Dielectric Withstanding Voltage

100VAC V

Body Breadth

0.093 inch

Pitch

0.016 0.40mm

Rated Current Signal

0.3A

Maks. Çalışma Sıcaklığı

85°C

Ambalaj

Tape & Reel (TR)

Akım Değeri

300mA

Din Conformance

NO

Body Depth

0.044 inch

Pcb Contact Pattern

RECTANGULAR

Body Length Or Diameter

0.613 inch

Contact Resistance

60mOhm

Iec Conformance

NO

Height Above Board

0.046 1.16mm

Polarization Key

ENDS

Contact Gender

MALE

Insulation Resistance

50MOhm

Stack Height Mating

1.5mm

Filter Feature

NO
