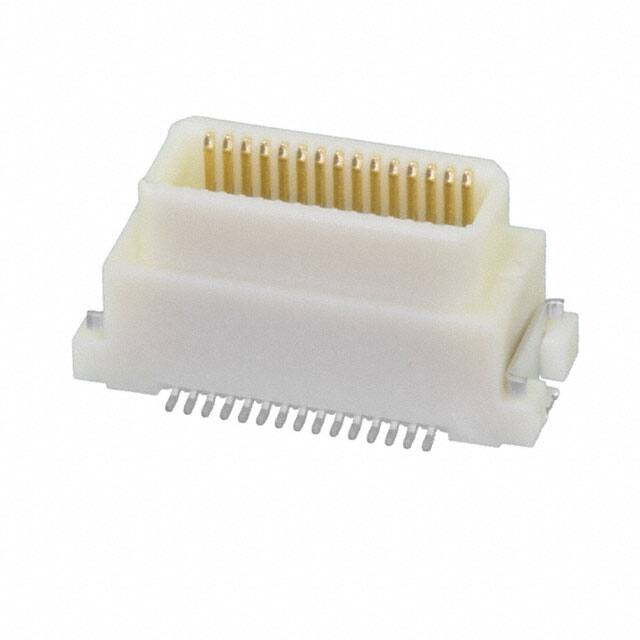

DF17B(4.0)-30DP-0.5V(57)

Teknik Özellikler

Total Number Of Contacts

30

Pozisyon Sayısı

30

Connector Type

Header, Outer Shroud Contacts

Contact Materials

PHOSPHOR BRONZE

Number Of Pcb Rows

2

Stack Height Mating

7mm 8mm

Operating Temperature Max

85°C

Özellikler

Solder Retention

Durability

50 Cycles

Parça Durumu

Active

Sıra Sayısı

2

Number Of Conductors

ONE

Body Breadth

0.185 inch

HTS Kodu

8536.69.40.40

Pitch

0.020 0.50mm

Rated Current Signal

0.3A

Montaj Tipi

Surface Mount

Reference Standard

UL

Dielectric Withstanding Voltage

150VAC V

Operating Temperature Min

-35°C

Reliability

COMMERCIAL

Insulation Materials

POLYAMIDE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Contact Pattern

RECTANGULAR

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

10 Weeks

Insulator Color

WHITE

Seri

DF17

REACH Uyumluluk Kodu

unknown

Contact Finish

Gold

Bodyshell Style

PLUG

Height Above Board

0.248 6.30mm

Contact Resistance

60mOhm

Insulation Resistance

500000000Ohm

RoHS Durumu

RoHS Compliant

Body Depth

0.157 inch

Montaj

Surface Mount

Contact Style

CENTRONIC

Pcb Contact Pattern

RECTANGULAR
