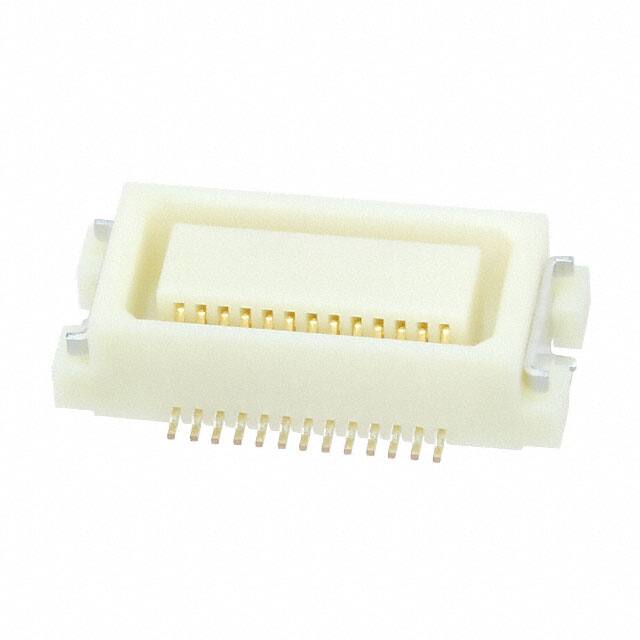

DF17B(3.0H)-26DS-0.5V(57)

Teknik Özellikler

Pcb Contact Pattern

RECTANGULAR

Contact Style

CENTRONIC

Body Depth

0.118 inch

Montaj

Surface Mount

RoHS Durumu

RoHS Compliant

Insulation Resistance

500000000Ohm

Contact Resistance

60mOhm

Height Above Board

0.118 3.00mm

Contact Finish

Gold

Body Length Or Diameter

0.453 inch

REACH Uyumluluk Kodu

unknown

Seri

DF17

Insulator Color

WHITE

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Tape & Reel (TR)

Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

POLYAMIDE

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

150VAC V

Operating Temperature Min

-35°C

Reference Standard

UL

Montaj Tipi

Surface Mount

Pitch

0.020 0.50mm

Rated Current Signal

0.3A

Body Breadth

0.185 inch

Number Of Conductors

ONE

Sıra Sayısı

2

Parça Durumu

Active

Durability

50 Cycles

Operating Temperature Max

85°C

Stack Height Mating

4mm

Özellikler

Solder Retention

Number Of Pcb Rows

2

Contact Materials

PHOSPHOR BRONZE

Connector Type

Receptacle, Center Strip Contacts

Pcb Contact Row Spacing

5.3086 mm

Pozisyon Sayısı

26

Total Number Of Contacts

26
