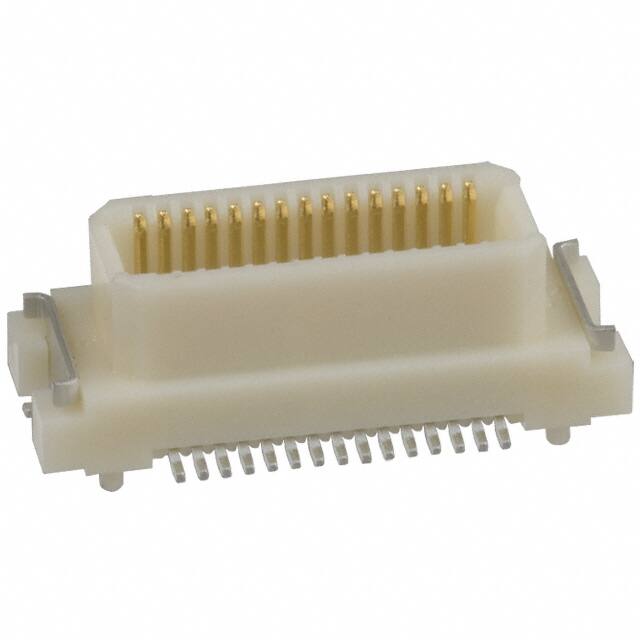

DF17(2.0)-70DP-0.5V(57)

Teknik Özellikler

Pitch

0.020 0.50mm

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Montaj Tipi

Surface Mount

Connector Type

Header, Outer Shroud Contacts

Contact Materials

Bronze, Copper

Housing Color

White

Terminal

SMD/SMT

Radyasyon Dayanımı

No

Housing Material

Polyamide

Total Number Of Contacts

70

Pozisyon Sayısı

70

Filter Feature

NO

Sıra Sayısı

2

Özellikler

Board Guide, Solder Retention

Stack Height Mating

5mm 6mm

Parça Durumu

Active

Mil Conformance

NO

Lead Pitch

500μm

Nominal Gerilim

50V

Height Above Board

0.169 4.30mm

Iec Conformance

NO

Gender

Male

Contact Finish

Gold

Row Spacing

5.7 mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

Straight

Montaj

Surface Mount

RoHS Durumu

RoHS Compliant

Din Conformance

NO

Akım Değeri

300mA

Ambalaj

Tape & Reel (TR)

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Stack Height

2mm

Seri

DF17

Reach Svhc

No SVHC
