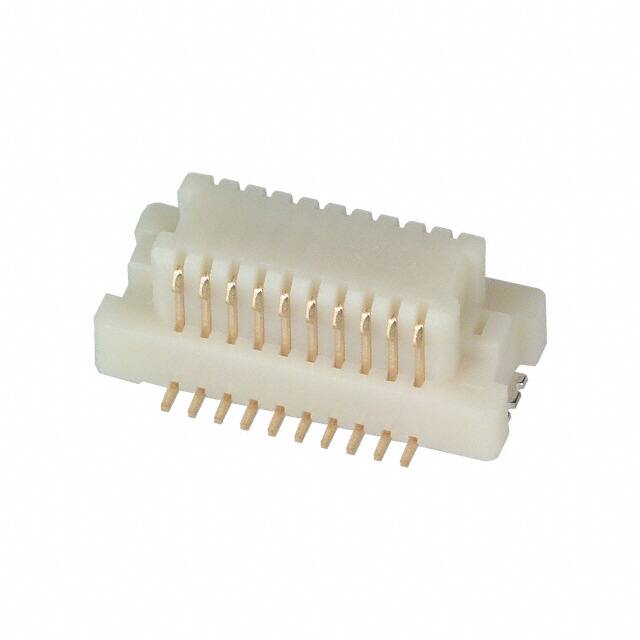

DF15(1.8)-40DS-0.65V(56)

Teknik Özellikler

Pitch

0.026 0.65mm

Rated Current Signal

0.3A

Montaj Tipi

Surface Mount

Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Dielectric Withstanding Voltage

150VAC V

JESD-609 Kodu

e4

Total Number Of Contacts

40

Mil Conformance

NO

Durability

50 Cycles

Parça Durumu

Obsolete

Özellikler

Board Guide, Solder Retention

Contact Finish Thickness

3.94μin 0.10μm

Min. Çalışma Sıcaklığı

-35°C

Number Of Pcb Rows

2

Number Of Conductors

ONE

Contact Finish

Gold

Plating Thickness

3.93μin

Gender

Female

Montaj

Surface Mount

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

16.35mm

Contact Pattern

RECTANGULAR

REACH Uyumluluk Kodu

unknown

Seri

DF15

Kurşunsuz

Lead Free

Max Voltage Rating Ac

50V

Option

GENERAL PURPOSE

Reliability

COMMERCIAL

Reference Standard

UL

Pozisyon Sayısı

40

Depth

4.2mm

Connector Type

Receptacle, Center Strip Contacts

Contact Materials

Copper

Housing Material

Polyamide

Pcb Contact Row Spacing

4.5466 mm

Housing Color

Beige
