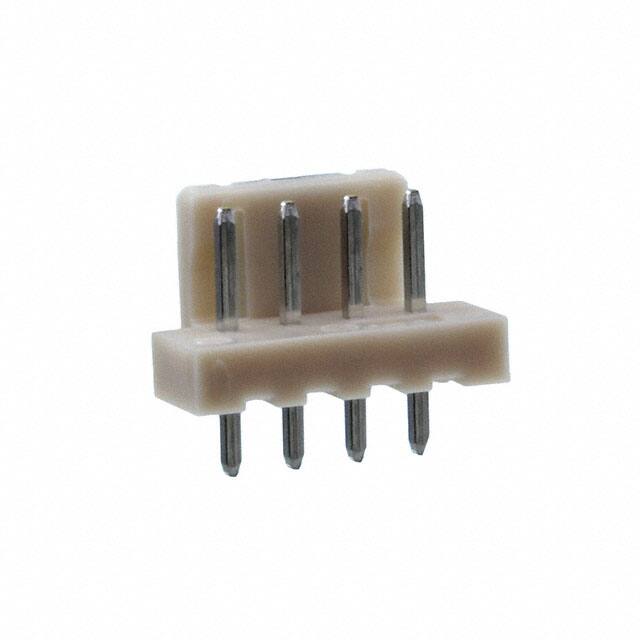

DF1-4P-2.5DS(05)

Teknik Özellikler

Mil Conformance

NO

Shrouding

Shrouded - 1 Wall

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Cable/Wire

Ambalaj

Bulk

Pozisyon Sayısı

4

Mixed Contacts

NO

Durability

30 Cycles

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Tin

Uzunluk

12.5mm

Insulation Height

0.236 6.00mm

Reliability

COMMERCIAL

Mounting Option1

LOCKING

Insulation Color

Brown

Orientation

Right Angle

Montaj Tipi

Through Hole, Right Angle

Option

GENERAL PURPOSE

Connector Type

Header

Depth

10.5mm

Din Conformance

NO

Radyasyon Dayanımı

No

Kurşunsuz Kodu

yes

Mating Contact Pitch

0.098 inch

Housing Material

Polyamide

Contact Shape

Square

Contact Resistance

30mOhm

ECCN Kodu

EAR99

Contact Lengthmating

0.177 4.50mm

Contact Length Post

0.118 3.00mm

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Contact Gender

Male

Contact Type

Male Pin

Reference Standard

UL

Max Voltage Rating Ac

250V

Pitch Mating

0.098 2.50mm
