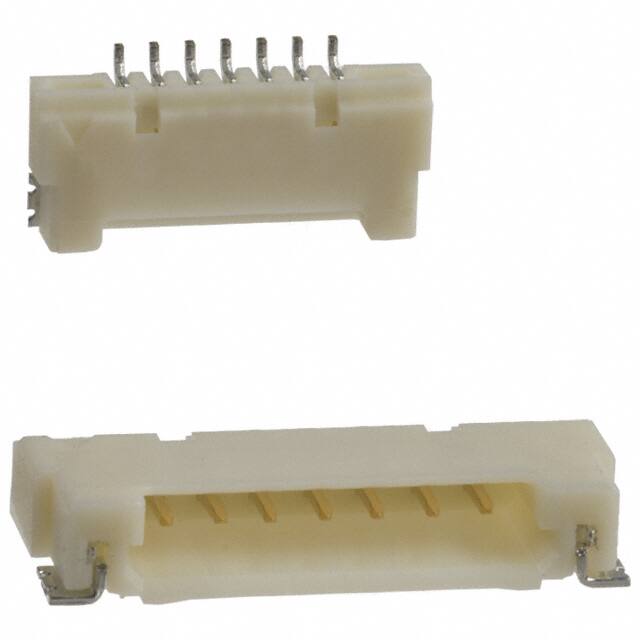

DF14A-7P-1.25H(56)

Teknik Özellikler

Contact Plating

Gold, Tin

Insulation Materials

Polyamide (PA), Nylon

Contact Finish Post

Tin-Copper

Ambalaj

Tape & Reel (TR)

ECCN Kodu

EAR99

Max Current Rating

1A

Insulation Color

Beige

Shrouding

Shrouded - 4 Wall

Contact Gender

Male

Contact Finish Mating

Gold

Iec Conformance

NO

Contact Resistance

30mOhm

Style

Board to Cable/Wire

Insulation Resistance

500MOhm

Din Conformance

NO

Akım Değeri

1A

Orientation

Right Angle

Pozisyon Sayısı

7

Terminal

Solder

Housing Material

Polyamide

Contact Materials

Brass

Connector Type

Header

Depth

5.7mm

Contact Shape

Square

Filter Feature

NO

Sıra Sayısı

1

Çalışma Sıcaklığı

-35°C~85°C

Insulation Height

0.098 2.50mm

Kurşunsuz

Lead Free

Max Voltage Rating Ac

150V

Option

GENERAL PURPOSE

Uzunluk

10.7mm

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

3.90μin 0.099μm

Seri

DF14

REACH Uyumluluk Kodu

unknown

Contact Finish Thickness Post

39.4μin 1.00μm
