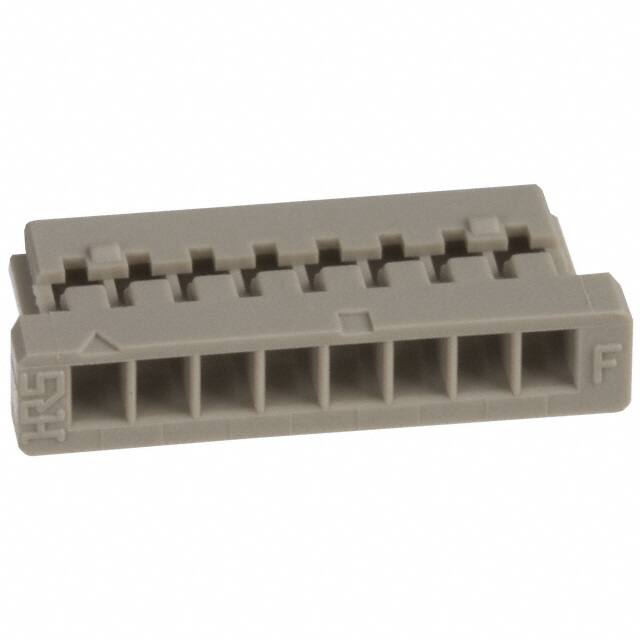

DF14-8S-1.25C

Teknik Özellikler

Kurşunsuz

Lead Free

Max Voltage Rating Ac

150V

Option

GENERAL PURPOSE

Reliability

COMMERCIAL

Reference Standard

UL

Pozisyon Sayısı

8

Connector Type

Receptacle

Contact Materials

Copper

Depth

5.8mm

Radyasyon Dayanımı

No

Housing Material

Polyamide

Lead Pitch

1.25mm

Sıra Sayısı

1

Filter Feature

NO

Contact Termination

Crimp

Note

Contacts Not Included

Insulation Resistance

500MOhm

Contact Gender

Female

Polarization Key

POLARIZED HOUSING

Contact Resistance

30mOhm

Iec Conformance

NO

Din Conformance

NO

Akım Değeri

1A

Orientation

Straight

Insertion Forcemax

3.0024 N

Contact Plating

Tin

ECCN Kodu

EAR99

Maks. Çalışma Sıcaklığı

85°C

Ambalaj

Bulk

Max Current Rating

1A

Yükseklik

2.3mm

Pitch

0.049 1.25mm

Rated Current Signal

1A

Flammability Rating

UL94 V-0

Genişlik

2.3mm

Montaj Tipi

Free Hanging (In-Line)

Dielectric Withstanding Voltage

500VAC V

Contact Type

Female Socket

Ul Flammability Code

94V-0

JESD-609 Kodu

e3/e4
