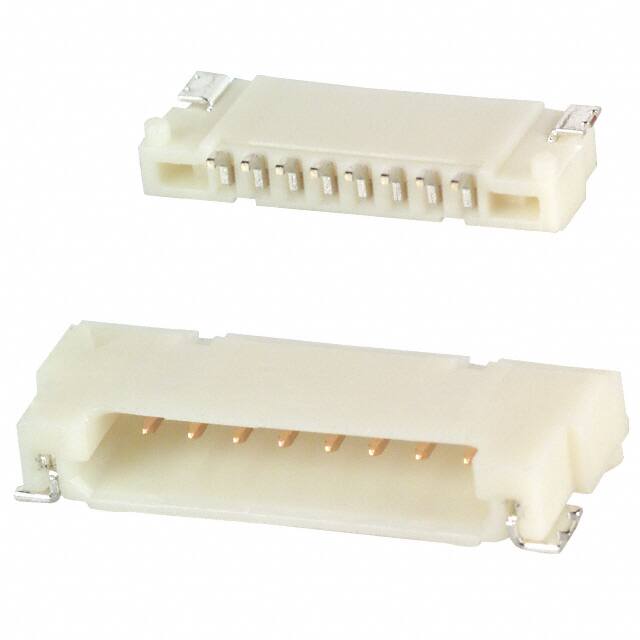

DF14-8P-1.25H(56)

Teknik Özellikler

Pozisyon Sayısı

8

Total Number Of Contacts

8

Radyasyon Dayanımı

No

Terminal

Solder

Contact Lengthmating

0.086 2.20mm

Connector Type

Header

Contact Materials

Brass

Contact Shape

Square

Mil Conformance

NO

Parça Durumu

Active

Pitch Mating

0.049 1.25mm

Özellikler

Board Guide, Solder Retention

Fastening Type

Push-Pull

Çalışma Sıcaklığı

-35°C~85°C

Sıra Sayısı

1

Filter Feature

NO

Insulation Height

0.098 2.50mm

Number Of Positions Loaded

All

Montaj Tipi

Surface Mount, Right Angle

Option

GENERAL PURPOSE

JESD-609 Kodu

e4

Ul Flammability Code

94V-0

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Insulation Materials

Polyamide (PA), Nylon

Ambalaj

Tape & Reel (TR)

Contact Finish Post

Tin-Copper

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

10 Weeks

Reach Svhc

Unknown

Seri

DF14

Contact Finish Thickness Mating

3.90μin 0.099μm

Insulation Color

Beige

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness Post

39.4μin 1.00μm

Gender

Male

Iec Conformance

NO

Contact Finish Mating

Gold
