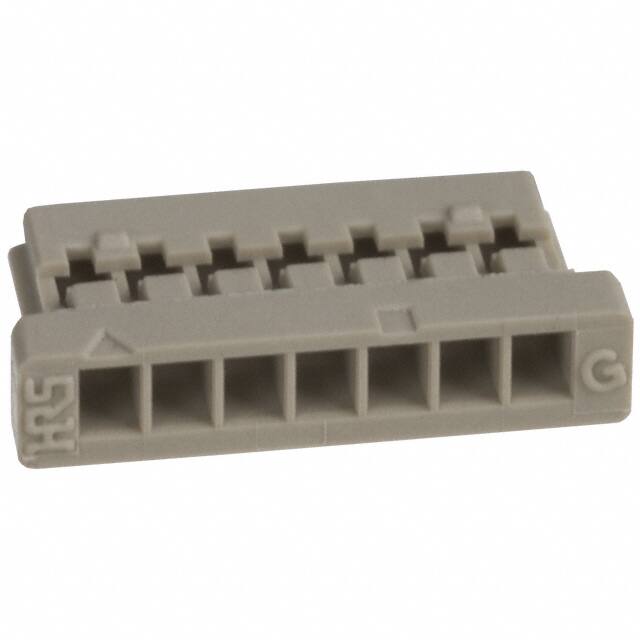

DF14-7S-1.25C

Teknik Özellikler

Rated Current Signal

1A

Pitch

0.049 1.25mm

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Contact Type

Female Socket

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Operating Temperature Min

-35°C

Dielectric Withstanding Voltage

500VAC V

Reference Standard

UL

JESD-609 Kodu

e3/e4

Montaj Tipi

Free Hanging (In-Line)

Option

GENERAL PURPOSE

Connector Type

Receptacle

Contact Materials

PHOSPHOR COPPER

Housing Material

Polyamide

Pozisyon Sayısı

7

Total Number Of Contacts

7

Contact Termination

Crimp

Filter Feature

NO

Sıra Sayısı

1

Parça Durumu

Active

Mil Conformance

NO

Renk

Beige

Operating Temperature Max

85°C

Lead Pitch

1.25mm

Insulation Resistance

500MOhm

Iec Conformance

NO

Contact Resistance

30mOhm

Contact Finish Mating

TIN/GOLD

Polarization Key

POLARIZED HOUSING

Mounting Option1

LOCKING

Note

Contacts Not Included

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

Straight

Akım Değeri

1A

RoHS Durumu

RoHS Compliant

Din Conformance

NO

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99
