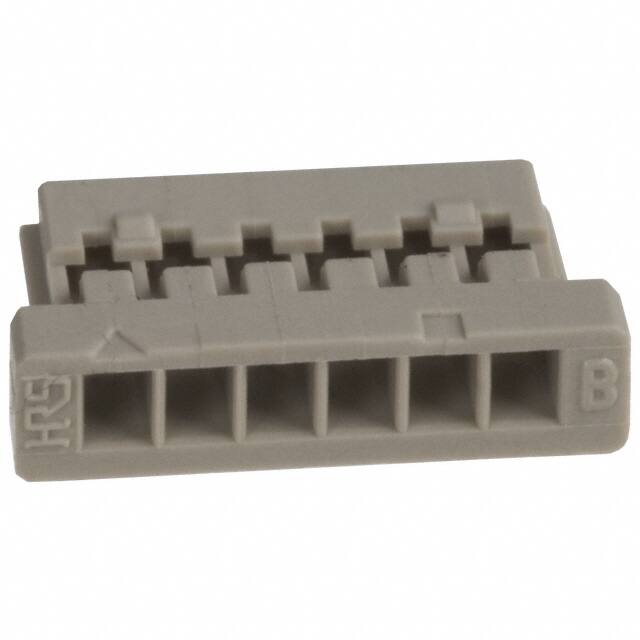

DF14-6S-1.25C

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Seri

DF14

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz Kodu

yes

Ambalaj

Bulk

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Forcemax

3.0024 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

Straight

Din Conformance

NO

RoHS Durumu

RoHS Compliant

Akım Değeri

1A

Insulation Resistance

500MOhm

Mounting Option1

LOCKING

Polarization Key

POLARIZED HOUSING

Contact Finish Mating

TIN/GOLD

Iec Conformance

NO

Contact Resistance

30mOhm

Note

Contacts Not Included

Contact Termination

Crimp

Filter Feature

NO

Sıra Sayısı

1

Operating Temperature Max

85°C

Renk

Beige

Parça Durumu

Active

Mil Conformance

NO

Lead Pitch

1.25mm

Connector Type

Receptacle

Contact Materials

PHOSPHOR COPPER

Housing Material

Polyamide

Total Number Of Contacts

6

Pozisyon Sayısı

6

Reliability

COMMERCIAL

Operating Temperature Min

-35°C

Dielectric Withstanding Voltage

500VAC V

Contact Type

Female Socket

Ul Flammability Code

94V-0

JESD-609 Kodu

e3/e4

Reference Standard

UL
