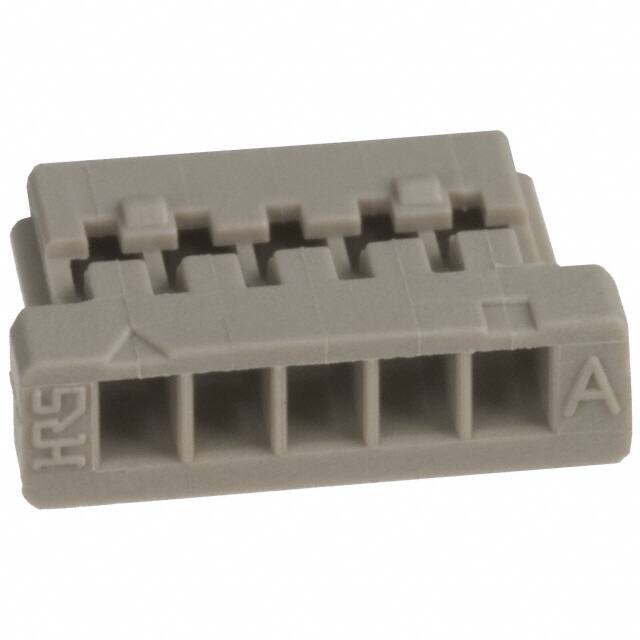

DF14-5S-1.25C

Teknik Özellikler

Contact Resistance

30mOhm

Iec Conformance

NO

Contact Finish Mating

TIN/GOLD

Polarization Key

POLARIZED HOUSING

Mounting Option1

LOCKING

Insulation Resistance

500MOhm

Note

Contacts Not Included

Orientation

Straight

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Akım Değeri

1A

Din Conformance

NO

RoHS Durumu

RoHS Compliant

Ambalaj

Bulk

Kurşunsuz Kodu

yes

Insertion Forcemax

3.0024 N

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Seri

DF14

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Pitch

0.049 1.25mm

Rated Current Signal

1A

Kurşunsuz

Lead Free

Reference Standard

UL

JESD-609 Kodu

e3/e4

Ul Flammability Code

94V-0

Contact Type

Female Socket

Reliability

COMMERCIAL

Montaj Tipi

Free Hanging (In-Line)

Option

GENERAL PURPOSE

Housing Material

Polyamide

Connector Type

Receptacle

Contact Materials

PHOSPHOR COPPER

Pozisyon Sayısı

5

Total Number Of Contacts

5

Sıra Sayısı

1

Filter Feature

NO

Contact Termination

Crimp

Lead Pitch

1.25mm

Mil Conformance

NO
