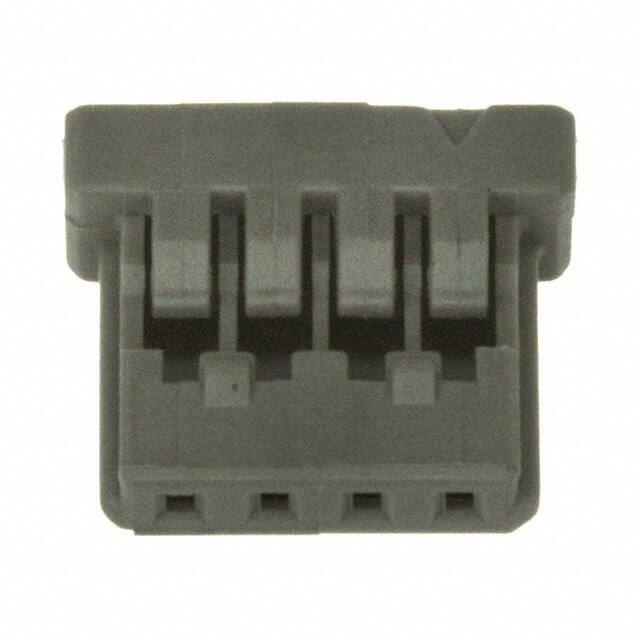

DF14-4S-1.25C

Teknik Özellikler

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

REACH Uyumluluk Kodu

unknown

Seri

DF14

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

10 Weeks

Insulation Resistance

500MOhm

Contact Resistance

30mOhm

Iec Conformance

NO

Contact Finish Mating

TIN/GOLD

Polarization Key

POLARIZED HOUSING

Mounting Option1

LOCKING

Note

Contacts Not Included

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Voltage Rated Ac

150V

Orientation

Straight

Akım Değeri

1A

Din Conformance

NO

RoHS Durumu

RoHS Compliant

Contact Materials

PHOSPHOR COPPER

Connector Type

Receptacle

Housing Material

Polyamide

Pozisyon Sayısı

4

Total Number Of Contacts

4

Sıra Sayısı

1

Filter Feature

NO

Contact Termination

Crimp

Mil Conformance

NO

Parça Durumu

Active

Renk

Beige

Operating Temperature Max

85°C

Lead Pitch

1.25mm

Rated Current Signal

1A

Pitch

0.049 1.25mm

Kurşunsuz

Lead Free

Contact Type

Female Socket

Operating Temperature Min

-35°C
