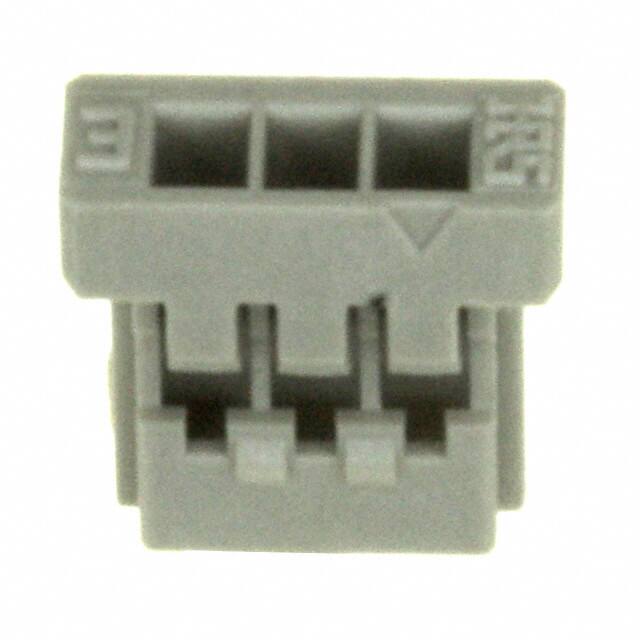

DF14-3S-1.25C

Teknik Özellikler

Kurşunsuz

Lead Free

Rated Current Signal

1A

Pitch

0.049 1.25mm

Option

GENERAL PURPOSE

Montaj Tipi

Free Hanging (In-Line)

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

500VAC V

Ul Flammability Code

94V-0

Contact Type

Female Socket

Reference Standard

UL

Total Number Of Contacts

3

Pozisyon Sayısı

3

Connector Type

Receptacle

Contact Materials

PHOSPHOR COPPER

Housing Material

Polyamide

Renk

Beige

Operating Temperature Max

85°C

Parça Durumu

Active

Mil Conformance

NO

Lead Pitch

1.25mm

Contact Termination

Crimp

Filter Feature

NO

Sıra Sayısı

1

Note

Contacts Not Included

Insulation Resistance

500000000Ohm

Contact Finish Mating

TIN/GOLD

Polarization Key

POLARIZED HOUSING

Mounting Option1

LOCKING

Iec Conformance

NO

Contact Resistance

30mOhm

Din Conformance

NO

RoHS Durumu

RoHS Compliant

Akım Değeri

1A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

Straight

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Ambalaj

Bulk

Fabrika Tedarik Süresi

10 Weeks
