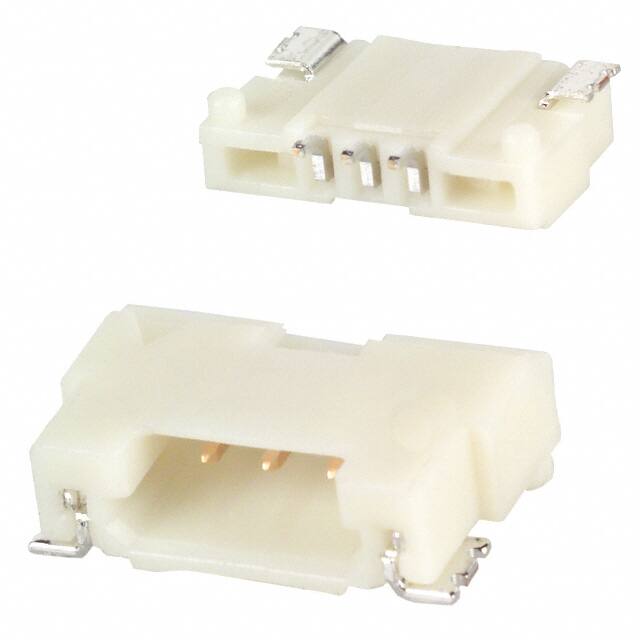

DF14-3P-1.25H(25)

Teknik Özellikler

Parça Durumu

Obsolete

Pitch Mating

0.049 1.25mm

Mil Conformance

NO

Özellikler

Board Guide, Solder Retention

Number Of Pcb Rows

1

Number Of Conductors

ONE

Fastening Type

Push-Pull

Total Number Of Contacts

3

Montaj Tipi

Surface Mount, Right Angle

Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Contact Type

Male Pin

Ul Flammability Code

94V-0

Dielectric Withstanding Voltage

500VAC V

JESD-609 Kodu

e3

Rated Current Signal

1A

Reach Svhc

No SVHC

REACH Uyumluluk Kodu

unknown

Seri

DF14

Contact Finish Thickness Mating

39.4μin 1.00μm

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.049 inch

Kurşunsuz Kodu

yes

Montaj

Surface Mount

RoHS Durumu

RoHS Compliant

Voltage Rated Ac

150V

Material Flammability Rating

UL94 V-0

Contact Shape

Square

Lead Pitch

1.25mm

Çalışma Sıcaklığı

-35°C~85°C

Sıra Sayısı

1

Filter Feature

NO

Pozisyon Sayısı

3

Connector Type

Header

Contact Materials

Brass

Housing Material

Polyamide

Terminal

Solder

Option

GENERAL PURPOSE

Reliability

COMMERCIAL
