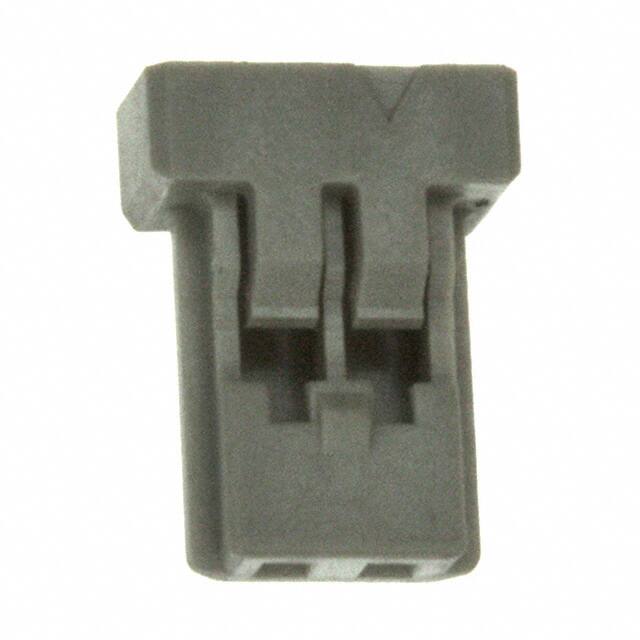

DF14-2S-1.25C

Teknik Özellikler

Akım Değeri

1A

RoHS Durumu

RoHS Compliant

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

Straight

Note

Contacts Not Included

Insulation Resistance

500MOhm

Contact Resistance

30mOhm

Iec Conformance

NO

Polarization Key

POLARIZED HOUSING

Mounting Option1

LOCKING

Contact Finish Mating

TIN/GOLD

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Seri

DF14

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Ambalaj

Bulk

Montaj Tipi

Free Hanging (In-Line)

Option

GENERAL PURPOSE

Contact Type

Female Socket

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Operating Temperature Min

-35°C

Dielectric Withstanding Voltage

500VAC V

JESD-609 Kodu

e3/e4

Reference Standard

UL

Kurşunsuz

Lead Free

Rated Current Signal

1A

Pitch

0.049 1.25mm

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Mil Conformance

NO

Renk

Beige

Operating Temperature Max

85°C

Lead Pitch

1.25mm

Contact Termination

Crimp

Filter Feature

NO
