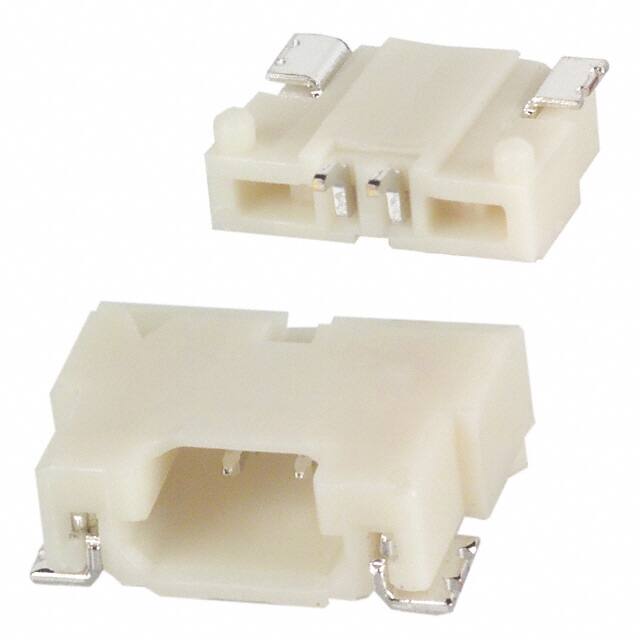

DF14-2P-1.25H(25)

Teknik Özellikler

Çalışma Sıcaklığı

-35°C~85°C

Filter Feature

NO

Sıra Sayısı

1

Contact Shape

Square

Lead Pitch

1.25mm

Housing Material

Plastic

Radyasyon Dayanımı

No

Terminal

Solder

Contact Materials

Brass

Connector Type

Header

Pozisyon Sayısı

2

Reference Standard

UL

Reliability

COMMERCIAL

Option

GENERAL PURPOSE

Insulation Height

0.098 2.50mm

Kurşunsuz

Lead Free

Insulation Color

Beige

Ambalaj

Tube

Contact Plating

Tin

Insulation Materials

Polyamide (PA), Nylon

Orientation

Right Angle

Pcb Contact Pattern

RECTANGULAR

Akım Değeri

1A

Din Conformance

NO

Iec Conformance

NO

Contact Resistance

30mOhm

Polarization Key

POLARIZED HOUSING

Contact Finish Mating

Tin-Copper

Style

Board to Cable/Wire

Insulation Resistance

500MOhm

Shrouding

Shrouded - 4 Wall

Fastening Type

Push-Pull

Number Of Conductors

ONE

Number Of Pcb Rows

1

Mil Conformance

NO

Pitch Mating

0.049 1.25mm

Durability

30 Cycles

Parça Durumu

Obsolete

Özellikler

Board Guide, Solder Retention

Total Number Of Contacts

2
