Adet bazlı fiyat
- 1+ adet$1.86
- 10+ adet$1.76
- 100+ adet$1.66
- 500+ adet$1.56
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Akım Değeri
- 1A
- Din Conformance
- NO
- Orientation
- Right Angle
- Shrouding
- Shrouded - 4 Wall
- Insulation Resistance
- 500MOhm
- Style
- Board to Cable/Wire
- Contact Resistance
- 30mOhm
- Iec Conformance
- NO
- Contact Finish Mating
- Gold
- Contact Gender
- Male
- Max Current Rating
- 1A
- Insulation Materials
- Polyamide (PA), Nylon
- ECCN Kodu
- EAR99
- Ambalaj
- Tape & Reel (TR)
- Contact Finish Post
- Tin-Copper
- Option
- GENERAL PURPOSE
- Kurşunsuz
- Lead Free
- Insulation Height
- 0.098 2.50mm
- Max Voltage Rating Ac
- 150V
- Contact Shape
- Square
- Çalışma Sıcaklığı
- -35°C~85°C
- Sıra Sayısı
- 1
- Filter Feature
- NO
- Pozisyon Sayısı
- 20
- Depth
- 5.7mm

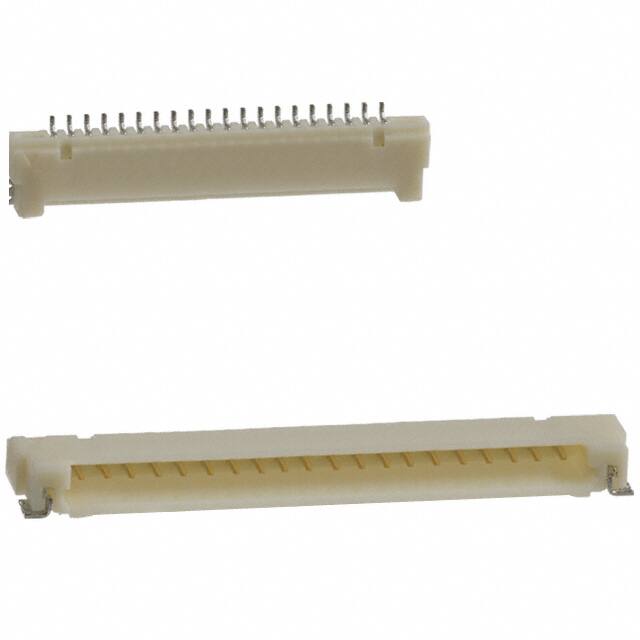

- Connector Type
- Header
- Contact Materials
- Brass
- Radyasyon Dayanımı
- No
- Housing Material
- Polyamide
- Terminal
- Solder
- Housing Color
- Beige
- Montaj
- Surface Mount
- RoHS Durumu
- RoHS Compliant
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Contact Finish Thickness Post
- 39.4μin 1.00μm
- Material Flammability Rating
- UL94 V-0
- Fabrika Tedarik Süresi
- 12 Weeks
- Insulation
- Insulated
- Seri
- DF14
- Contact Finish Thickness Mating
- 3.90μin 0.099μm
