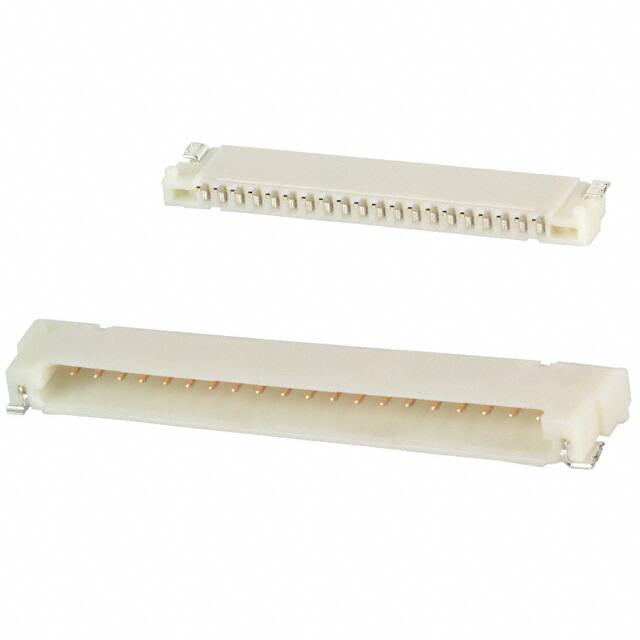

DF14-20P-1.25H(25)

Teknik Özellikler

Rated Current Signal

1A

Ul Flammability Code

94V-0

Contact Type

Male Pin

Dielectric Withstanding Voltage

500VAC V

JESD-609 Kodu

e3

Montaj Tipi

Surface Mount, Right Angle

Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Total Number Of Contacts

20

Number Of Conductors

ONE

Fastening Type

Push-Pull

Mil Conformance

NO

Pitch Mating

0.049 1.25mm

Durability

30 Cycles

Parça Durumu

Obsolete

Özellikler

Board Guide, Solder Retention

Number Of Pcb Rows

1

Material Flammability Rating

UL94 V-0

Gender

Male

Voltage Rated Ac

150V

Montaj

Surface Mount

RoHS Durumu

RoHS Compliant

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Mating Contact Pitch

0.049 inch

Uzunluk

29.95mm

Seri

DF14

Contact Finish Thickness Mating

39.4μin 1.00μm

Reach Svhc

No SVHC

Max Voltage Rating Ac

150V

Kurşunsuz

Lead Free

Insulation Height

0.098 2.50mm

Reliability

COMMERCIAL

Reference Standard

UL

Option

GENERAL PURPOSE

Depth

5.7mm

Connector Type

Header

Contact Materials

Brass

Housing Material

Polyamide
