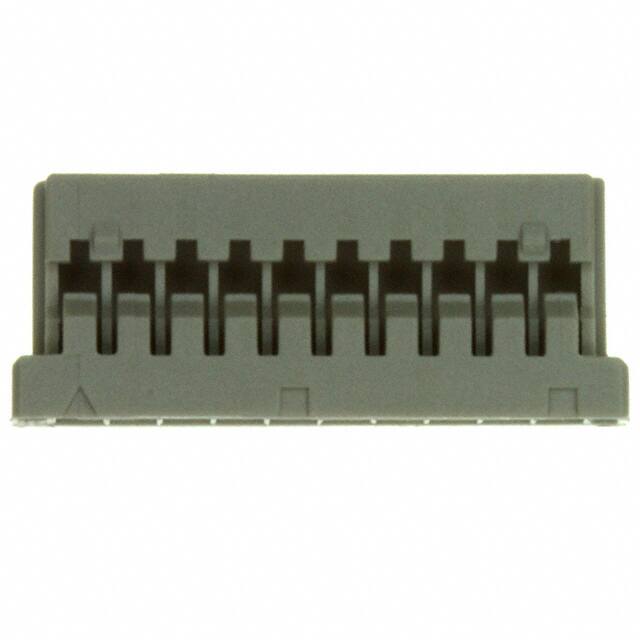

DF14-10S-1.25C

Teknik Özellikler

Total Number Of Contacts

10

Pozisyon Sayısı

10

Connector Type

Receptacle

Contact Materials

PHOSPHOR COPPER

Housing Material

Polyamide

Operating Temperature Max

85°C

Renk

Beige

Mil Conformance

NO

Parça Durumu

Active

Lead Pitch

1.25mm

Sıra Sayısı

1

Filter Feature

NO

Contact Termination

Crimp

Kurşunsuz

Lead Free

Pitch

0.049 1.25mm

Rated Current Signal

1A

HTS Kodu

8536.69.40.40

Option

GENERAL PURPOSE

Montaj Tipi

Free Hanging (In-Line)

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

500VAC V

Operating Temperature Min

-35°C

Ul Flammability Code

94V-0

Contact Type

Female Socket

JESD-609 Kodu

e3/e4

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Insertion Forcemax

3.0024 N

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Ambalaj

Bulk

Fabrika Tedarik Süresi

10 Weeks

Seri

DF14

Note

Contacts Not Included

Insulation Resistance

500MOhm

Contact Finish Mating

TIN/GOLD

Polarization Key

POLARIZED HOUSING

Mounting Option1

LOCKING

Contact Resistance

30mOhm
