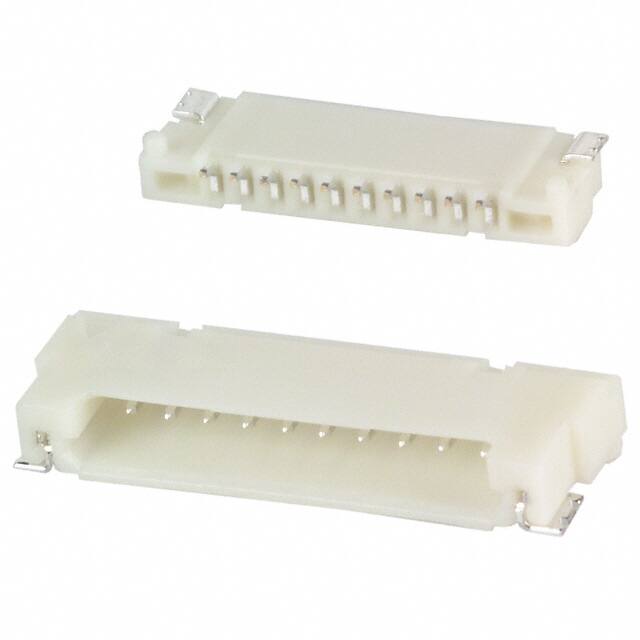

DF14-10P-1.25H(55)

Teknik Özellikler

Total Number Of Contacts

10

Contact Lengthmating

0.086 2.20mm

Number Of Pcb Rows

1

Özellikler

Board Guide, Solder Retention

Parça Durumu

Obsolete

Durability

50 Cycles

Mil Conformance

NO

Pitch Mating

0.049 1.25mm

Fastening Type

Push-Pull

Number Of Conductors

ONE

Body Breadth

0.098 inch

Rated Current Signal

1A

Number Of Positions Loaded

All

Montaj Tipi

Surface Mount, Right Angle

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

500VAC V

Contact Type

Male Pin

Ul Flammability Code

94V-0

Uzunluk

14.45mm

Mating Contact Pitch

0.049 inch

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Contact Finish Thickness Mating

3.90μin 0.099μm

Seri

DF14

Contact Finish Thickness Post

39.4μin 1.00μm

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Montaj

Surface Mount

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pozisyon Sayısı

10

Terminal

Solder

Housing Color

Beige

Radyasyon Dayanımı

No

Housing Material

Polyamide

Connector Type

Header

Contact Materials

Brass

Depth

5.7mm

Lead Pitch

1.25mm

Contact Shape

Square
