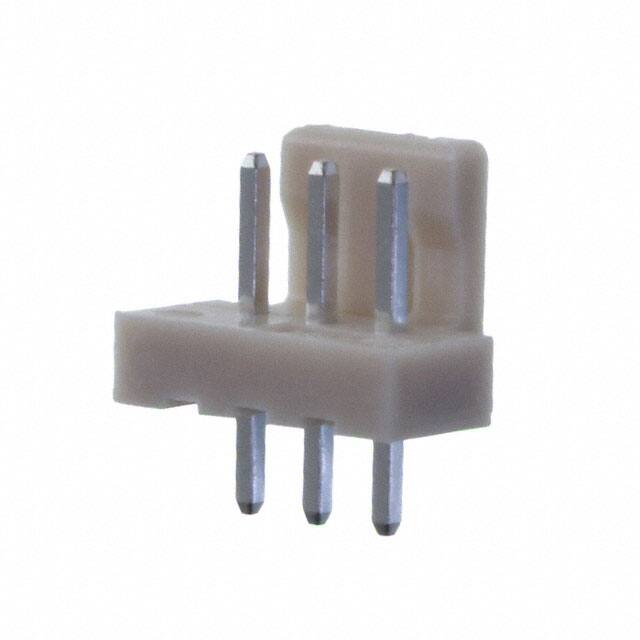

DF1-3P-2.5DSA(05)

Teknik Özellikler

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Insulation Color

Brown

Orientation

Straight

Mounting Option1

LOCKING

Montaj Tipi

Through Hole

Terminal Adımı

2.5mm

Insulation Height

0.295 7.50mm

Uzunluk

10mm

Mating Contact Pitch

0.098 inch

Housing Material

Polyamide

Connector Type

Header

Depth

6mm

Option

GENERAL PURPOSE

Radyasyon Dayanımı

No

Din Conformance

NO

Kurşunsuz Kodu

yes

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Cable/Wire

Shrouding

Shrouded - 1 Wall

Mil Conformance

NO

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Tin

Wire Gauge Min

24 AWG

Mixed Contacts

NO

Ambalaj

Bulk

Pozisyon Sayısı

3

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Withdrawl Forcemin

.556 N

JESD-609 Kodu

e3

Filter Feature

NO

Akım Değeri

3A

Fastening Type

Friction Lock

Dielectric Withstanding Voltage

650VAC V

Additional Feature

LOW PROFILE
