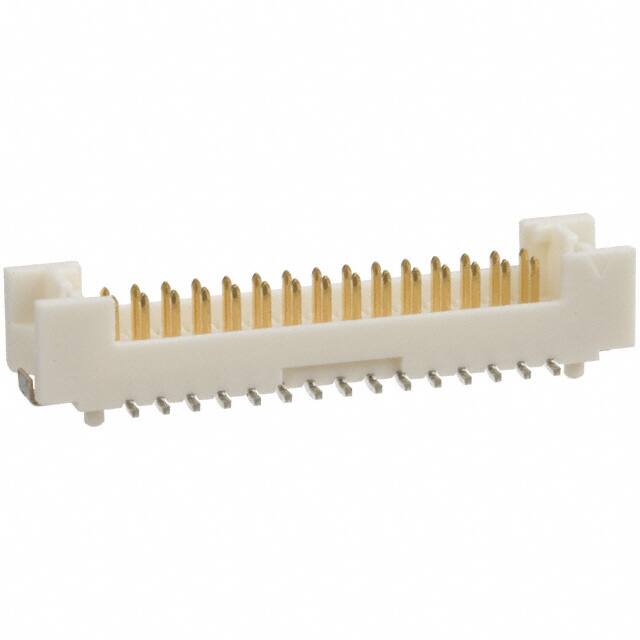

DF13EA-30DP-1.25V(51)

Teknik Özellikler

Contact Lengthmating

0.094 2.40mm

Connector Type

Header

Contact Materials

Brass

Row Spacing Mating

0.049 (1.25mm)

Terminal

Solder

Pozisyon Sayısı

30

Total Number Of Contacts

30

Fastening Type

Push-Pull

Çalışma Sıcaklığı

-35°C~85°C

Sıra Sayısı

2

Filter Feature

NO

Mil Conformance

NO

Parça Durumu

Active

Pitch Mating

0.049 1.25mm

Özellikler

Solder Retention

Stack Height Mating

5.8mm

Current Rating Amps

1A

Contact Shape

Square

HTS Kodu

8536.69.40.40

Insulation Height

0.189 4.80mm

Contact Type

Male Pin

Ul Flammability Code

94V-0

Option

GENERAL PURPOSE

Montaj Tipi

Surface Mount

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Ambalaj

Tape & Reel (TR)

Contact Finish Post

Tin-Copper

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Insulation Materials

Polyamide (PA), Nylon

REACH Uyumluluk Kodu

unknown

Insulation Color

Beige

Seri

DF13

Contact Finish Thickness Mating

8.00μin 0.203μm

Fabrika Tedarik Süresi

10 Weeks

Nominal Gerilim

150V

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Iec Conformance

NO
