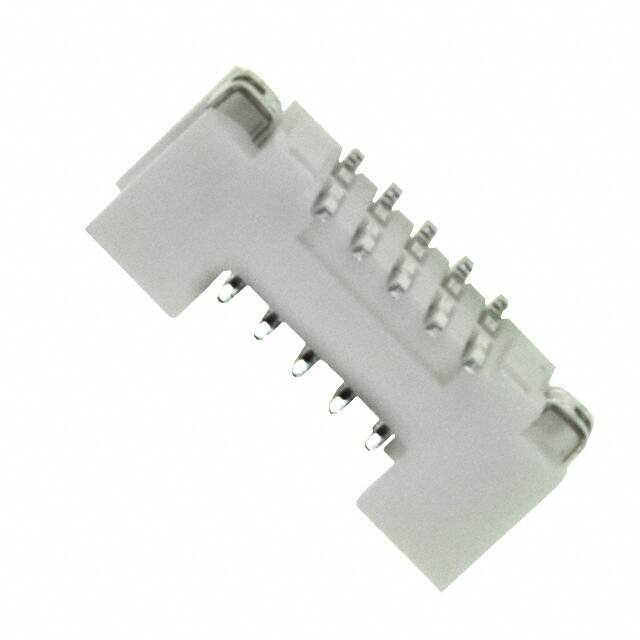

DF13EA-10DP-1.25V(51)

Teknik Özellikler

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Contact Finish Mating

Gold

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Nominal Gerilim

150V

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness Post

39.4μin 1.00μm

Seri

DF13

Contact Finish Thickness Mating

8.00μin 0.203μm

REACH Uyumluluk Kodu

unknown

Insulation Color

Beige

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Tape & Reel (TR)

Contact Finish Post

Tin-Copper

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Insulation Materials

Polyamide (PA), Nylon

Contact Type

Male Pin

Ul Flammability Code

94V-0

Number Of Positions Loaded

All

Montaj Tipi

Surface Mount

Option

GENERAL PURPOSE

HTS Kodu

8536.69.40.40

Insulation Height

0.189 4.80mm

Çalışma Sıcaklığı

-35°C~85°C

Fastening Type

Push-Pull

Filter Feature

NO

Sıra Sayısı

2

Contact Shape

Square

Current Rating Amps

1A

Pitch Mating

0.049 1.25mm

Parça Durumu

Active

Mil Conformance

NO

Özellikler

Solder Retention

Stack Height Mating

5.8mm

Row Spacing Mating

0.049 (1.25mm)
