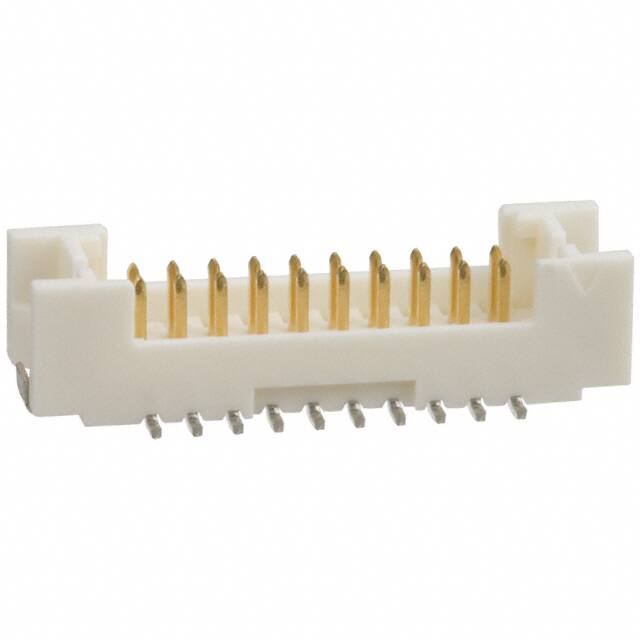

DF13E-20DP-1.25V(51)

Teknik Özellikler

Contact Finish Thickness Post

39.4μin 1.00μm

Shrouding

Shrouded - 4 Wall

Nominal Gerilim

150V

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Contact Finish Mating

Gold

Iec Conformance

NO

Din Conformance

NO

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Materials

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Contact Finish Post

Tin-Copper

Ambalaj

Tape & Reel (TR)

Fabrika Tedarik Süresi

12 Weeks

Insulation Color

Beige

REACH Uyumluluk Kodu

unknown

Contact Finish Thickness Mating

8.00μin 0.203μm

Seri

DF13

Insulation Height

0.189 4.80mm

Option

GENERAL PURPOSE

Montaj Tipi

Surface Mount

Number Of Positions Loaded

All

Contact Type

Male Pin

Ul Flammability Code

94V-0

Total Number Of Contacts

20

Pozisyon Sayısı

20

Contact Lengthmating

0.094 2.40mm

Contact Materials

Brass

Connector Type

Header

Terminal

Solder

Row Spacing Mating

0.049 (1.25mm)

Stack Height Mating

5.8mm

Özellikler

Board Guide, Solder Retention

Mil Conformance

NO

Parça Durumu

Active

Pitch Mating

0.049 1.25mm

Current Rating Amps

1A

Contact Shape

Square
