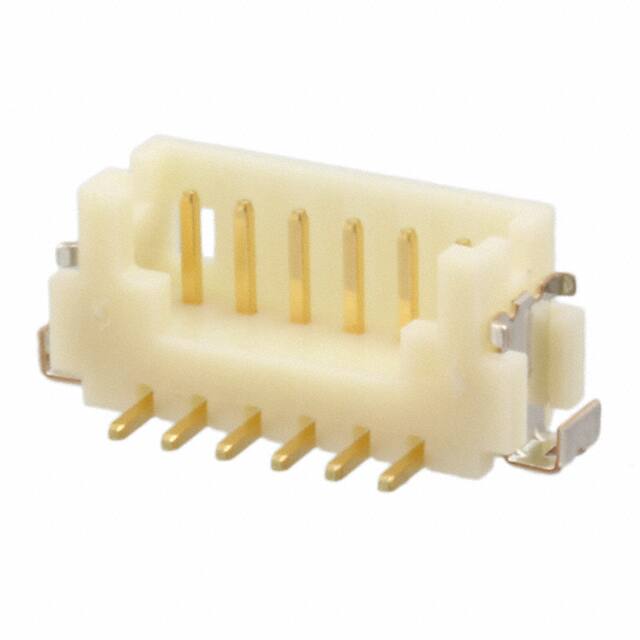

DF13C-6P-1.25V(51)

Teknik Özellikler

Total Number Of Contacts

6

Özellikler

Solder Retention

Parça Durumu

Active

Durability

50 Cycles

Pitch Mating

0.049 1.25mm

Mil Conformance

NO

Number Of Pcb Rows

1

Number Of Conductors

ONE

Fastening Type

Detent Lock

Montaj Tipi

Surface Mount

Number Of Positions Loaded

All

Contact Type

Male Pin

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Uzunluk

12.15mm

Mating Contact Pitch

0.049 inch

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

8.00μin 0.203μm

Seri

DF13

Material Flammability Rating

UL94 V-0

Montaj

Surface Mount

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pozisyon Sayısı

6

Contact Materials

Brass

Connector Type

Header

Depth

3.4mm

Housing Color

Beige

Terminal

Solder

Housing Material

Polyamide

Radyasyon Dayanımı

No

Stack Height Mating

5.8mm

Contact Shape

Square

Filter Feature

NO

Sıra Sayısı

1

Çalışma Sıcaklığı

-35°C~85°C

Kurşunsuz

Lead Free
