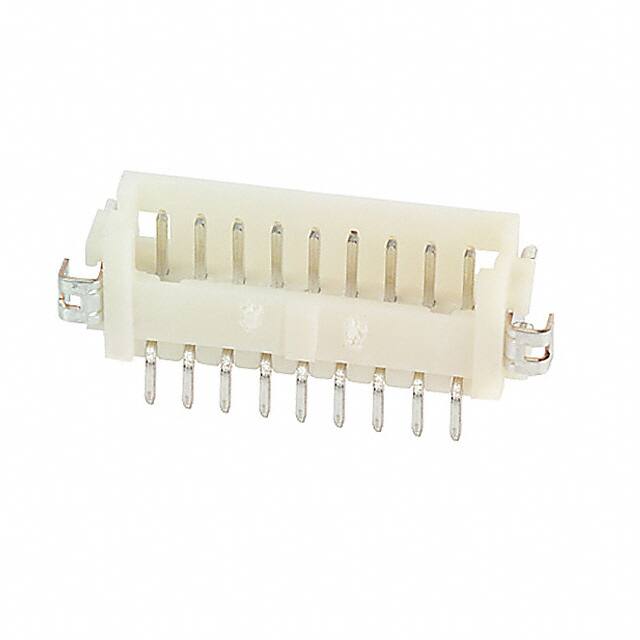

DF13A-9P-1.25H(21)

Teknik Özellikler

Pitch Mating

0.049 1.25mm

Number Of Positions Loaded

All

Max Voltage Rating Ac

150V

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Kurşunsuz Kodu

yes

Parça Durumu

Active

Contact Resistance

30mOhm

Terminal

Solder

Iec Conformance

NO

Total Number Of Contacts

9

Insulation Height

0.142 3.60mm

Depth

6.5mm

Çalışma Sıcaklığı

-35°C~85°C

Contact Finish Mating

Tin

Max Current Rating

1A

Contact Materials

Brass

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Mounting Option1

LOCKING

Additional Feature

LOW PROFILE

Housing Material

Polyamide

Insulation Resistance

500MOhm

RoHS Durumu

RoHS Compliant

Reference Standard

UL

Kurşunsuz

Lead Free

Akım Değeri

1A

Fabrika Tedarik Süresi

10 Weeks

Option

GENERAL PURPOSE

Number Of Pcb Rows

1

REACH Uyumluluk Kodu

unknown

Flammability Rating

UL94 V-0

Insulation Materials

Polyamide (PA), Nylon

Filter Feature

NO

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

50 Cycles

Montaj Tipi

Surface Mount, Right Angle

Number Of Conductors

ONE
