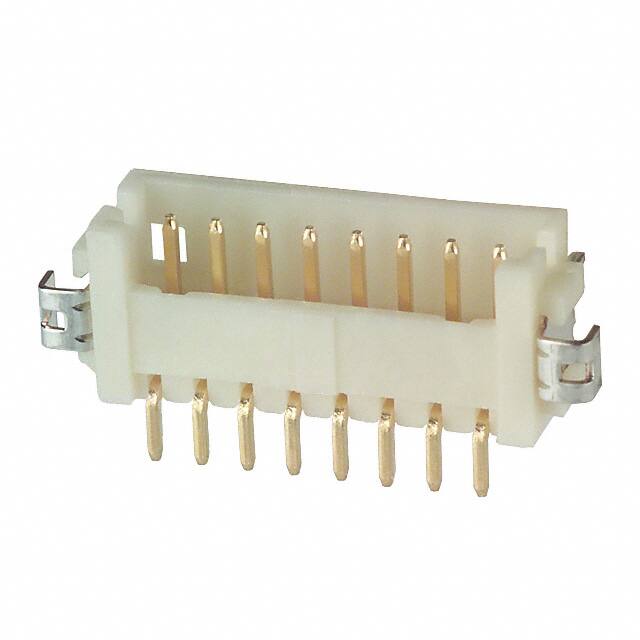

DF13A-8P-1.25H(21)

Teknik Özellikler

Insulation Height

0.142 3.60mm

Çalışma Sıcaklığı

-35°C~85°C

Contact Finish Mating

Tin

Total Number Of Contacts

8

Iec Conformance

NO

Terminal

Solder

Contact Resistance

30mOhm

Connector Type

Header

Parça Durumu

Active

Kurşunsuz Kodu

yes

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.049 1.25mm

Number Of Positions Loaded

All

Number Of Pcb Rows

1

Montaj

Surface Mount

Option

GENERAL PURPOSE

Nominal Gerilim

150V

Reference Standard

UL

Akım Değeri

1A

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz

Lead Free

Housing Material

Polyamide

Insulation Resistance

500MOhm

Additional Feature

LOW PROFILE

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Din Conformance

NO

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Mixed Contacts

NO

Reliability

COMMERCIAL

Number Of Conductors

ONE

Mating Contact Pitch

0.049 inch

Montaj Tipi

Surface Mount, Right Angle

Mil Conformance

NO

Insulation Color

Beige

Style

Board to Cable/Wire

Durability

50 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)
