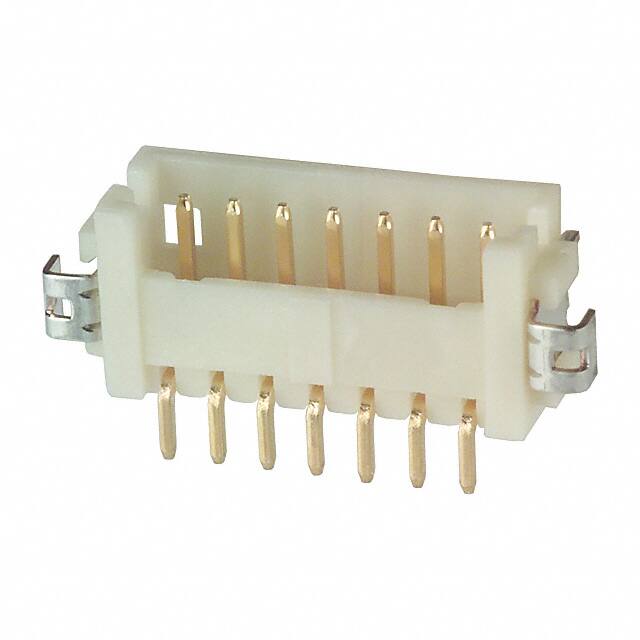

DF13A-7P-1.25H(51)

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Contact Shape

Square

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

50 Cycles

Mating Contact Pitch

0.049 inch

Montaj Tipi

Surface Mount, Right Angle

Number Of Conductors

ONE

Style

Board to Cable/Wire

Insulation Color

Beige

Mil Conformance

NO

Mixed Contacts

NO

Reliability

COMMERCIAL

Pozisyon Sayısı

7

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e4

Contact Type

Male Pin

Özellikler

Solder Retention

Ambalaj

Tape & Reel (TR)

Fastening Type

Detent Lock

Insertion Forcemax

3.0024 N

Contact Finish Thickness Mating

8.00μin 0.203μm

Orientation

Right Angle

Seri

DF13

Pitch Mating

0.049 1.25mm

Number Of Positions Loaded

All

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Kurşunsuz Kodu

yes

Parça Durumu

Active

Contact Resistance

30mOhm

Iec Conformance

NO

Terminal

Solder

Total Number Of Contacts

7

Insulation Height

0.142 3.60mm

Çalışma Sıcaklığı

-35°C~85°C

Contact Finish Mating

Gold

Contact Materials

Brass

Sıra Sayısı

1
