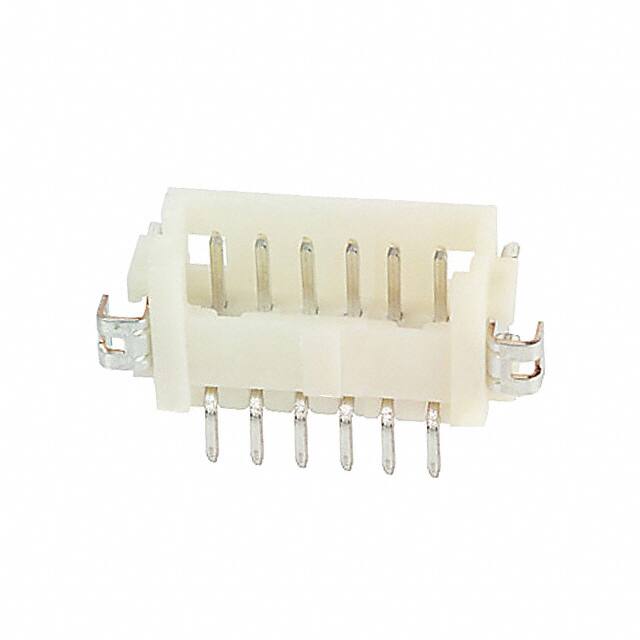

DF13A-6P-1.25H(20)

Teknik Özellikler

Mixed Contacts

NO

Reliability

COMMERCIAL

Lead Pitch

1.25mm

Durability

30 Cycles

Mating Contact Pitch

0.049 inch

Montaj Tipi

Surface Mount, Right Angle

Number Of Conductors

ONE

Style

Board to Cable/Wire

Mil Conformance

NO

Rated Current Signal

1A

Contact Shape

Square

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

REACH Uyumluluk Kodu

unknown

Insertion Forcemax

3.0024 N

Contact Finish Thickness Mating

39.4μin 1.00μm

Orientation

Right Angle

Seri

DF13

Contact Gender

Male

Ambalaj

Tube

Fastening Type

Detent Lock

Özellikler

Solder Retention

Uzunluk

12.15mm

Pozisyon Sayısı

6

ECCN Kodu

EAR99

JESD-609 Kodu

e3

Material Flammability Rating

UL94 V-0

Yükseklik

3.6mm

Contact Type

Male Pin

Depth

6.5mm

Polarization Key

GUIDE SLOT(S)

Insulation Height

0.142 3.60mm

Çalışma Sıcaklığı

-35°C~85°C

Max Current Rating

1A

Housing Color

Beige

Contact Finish Mating

Tin

Iec Conformance

NO

Terminal

Solder

Total Number Of Contacts

6
