Adet bazlı fiyat
- 1+ adet$0.13
- 10+ adet$0.13
- 100+ adet$0.12
- 500+ adet$0.11
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

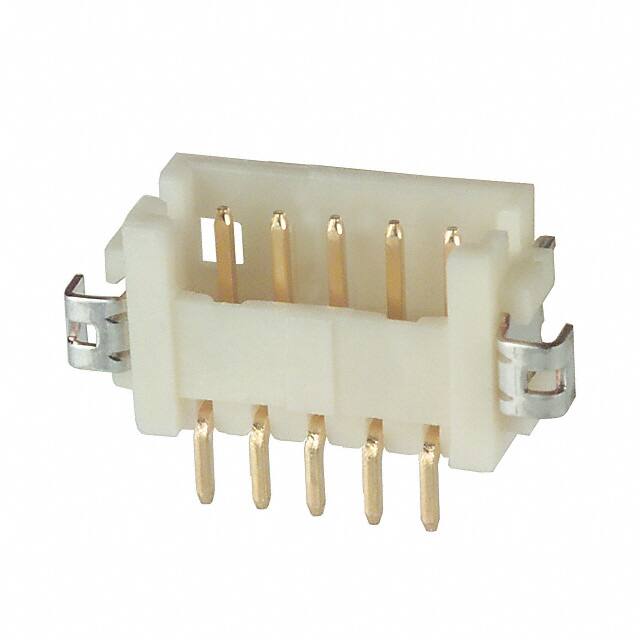

Teknik Özellikler
- Style
- Board to Cable/Wire
- Mil Conformance
- NO
- Insulation Color
- Beige
- Mating Contact Pitch
- 0.049 inch
- Montaj Tipi
- Surface Mount, Right Angle
- Number Of Conductors
- ONE
- Reliability
- COMMERCIAL
- Mixed Contacts
- NO
- REACH Uyumluluk Kodu
- unknown
- Flammability Rating
- UL94 V-0
- Contact Shape
- Square
- Insulation Materials
- Polyamide (PA), Nylon
- Filter Feature
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Ambalaj
- Tape & Reel (TR)
- Contact Gender
- Male
- Fastening Type
- Detent Lock
- Insertion Forcemax
- 3.0024 N
- Orientation
- Right Angle
- Seri
- DF13
- Material Flammability Rating
- UL94 V-0
- JESD-609 Kodu
- e3
- Pozisyon Sayısı
- 5
- Contact Type
- Male Pin
- Özellikler
- Solder Retention
- Iec Conformance
- NO
- Terminal
- Solder
- Total Number Of Contacts
- 5
- Contact Finish Mating
- Tin
- Insulation Height
- 0.142 3.60mm
- Çalışma Sıcaklığı
- -35°C~85°C
- Number Of Positions Loaded
- All
- Pitch Mating
- 0.049 1.25mm
- Shrouding
- Shrouded - 4 Wall
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Connector Type
- Header
- Contact Resistance
- 30mOhm
- Kurşunsuz
- Lead Free
- Fabrika Tedarik Süresi
- 10 Weeks
