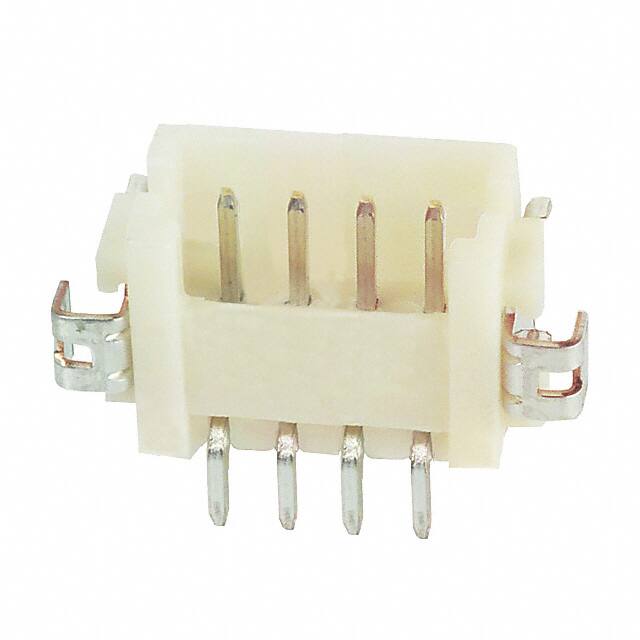

DF13A-4P-1.25H(51)

Teknik Özellikler

Fabrika Tedarik Süresi

12 Weeks

Kurşunsuz

Lead Free

Nominal Gerilim

150V

Reference Standard

UL

Montaj

Surface Mount

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Current Rating Amps

1A

Contact Materials

Brass

RoHS Durumu

RoHS Compliant

Insulation Resistance

500000000Ohm

Additional Feature

LOW PROFILE

Total Number Of Contacts

4

Terminal

Solder

Iec Conformance

NO

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-35°C~85°C

Insulation Height

0.142 3.60mm

Shrouding

Shrouded - 4 Wall

Number Of Positions Loaded

All

Pitch Mating

0.049 1.25mm

Contact Resistance

30mOhm

Parça Durumu

Active

Kurşunsuz Kodu

yes

Connector Type

Header

Fastening Type

Detent Lock

Ambalaj

Tape & Reel (TR)

Seri

DF13

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Type

Male Pin

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e4

ECCN Kodu

EAR99

Pozisyon Sayısı

4

Özellikler

Solder Retention

Mil Conformance

NO
