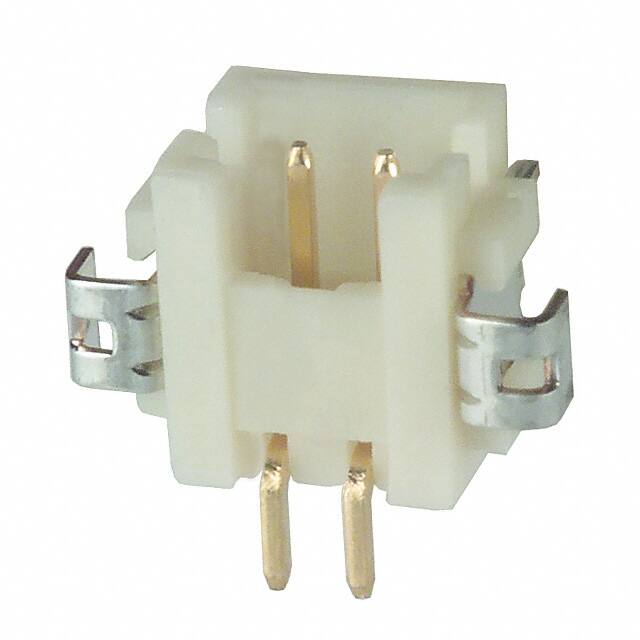

DF13A-2P-1.25H(21)

Teknik Özellikler

Total Number Of Contacts

2

Iec Conformance

NO

Terminal

Solder

Contact Finish Mating

Tin

Insulation Height

0.142 3.60mm

Çalışma Sıcaklığı

-35°C~85°C

Number Of Positions Loaded

All

Pitch Mating

0.049 1.25mm

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Kurşunsuz Kodu

yes

Connector Type

Header

Contact Resistance

30mOhm

Fabrika Tedarik Süresi

12 Weeks

Kurşunsuz

Lead Free

Reference Standard

UL

Nominal Gerilim

150V

Option

GENERAL PURPOSE

Number Of Pcb Rows

1

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Current Rating Amps

1A

Contact Materials

Brass

Mounting Option1

LOCKING

Din Conformance

NO

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Insulation Resistance

500000000Ohm

Additional Feature

LOW PROFILE

Durability

50 Cycles

Mil Conformance

NO

Insulation Color

Beige

Style

Board to Cable/Wire

Number Of Conductors

ONE

Mating Contact Pitch

0.049 inch

Montaj Tipi

Surface Mount, Right Angle

Reliability

COMMERCIAL

Mixed Contacts

NO

Filter Feature

NO
