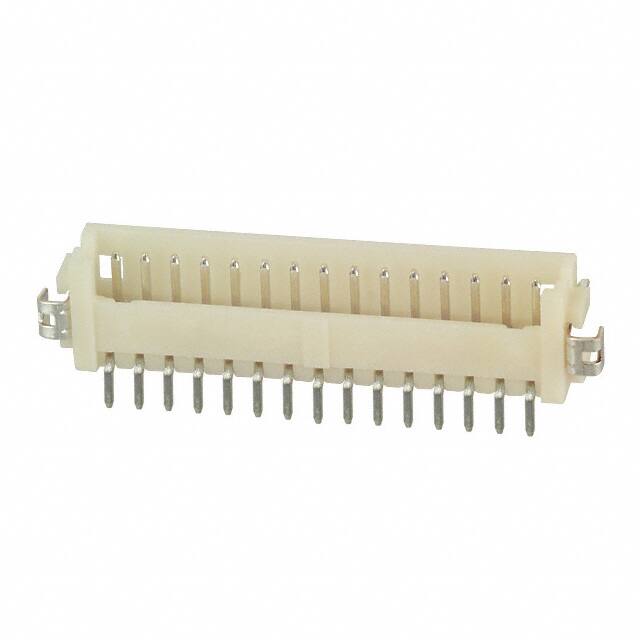

DF13A-15P-1.25H(21)

Teknik Özellikler

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

1A

HTS Kodu

8536.69.40.40

Reference Standard

UL

Option

GENERAL PURPOSE

Radyasyon Dayanımı

No

Montaj

Surface Mount

Number Of Pcb Rows

1

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Brass

Din Conformance

NO

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Additional Feature

LOW PROFILE

Housing Material

Polyamide

Insulation Resistance

500000000Ohm

Iec Conformance

NO

Terminal

Solder

Total Number Of Contacts

15

Contact Finish Mating

Tin

Housing Color

Beige

Max Current Rating

1A

Insulation Height

0.142 3.60mm

Depth

5mm

Çalışma Sıcaklığı

-35°C~85°C

Number Of Positions Loaded

All

Pitch Mating

0.049 1.25mm

Max Voltage Rating Ac

150V

Shrouding

Shrouded - 4 Wall

Kurşunsuz Kodu

yes

Parça Durumu

Active

Connector Type

Header

Contact Resistance

30mOhm

Ambalaj

Tape & Reel (TR)

Fastening Type

Detent Lock

Insertion Forcemax

3.0024 N

Orientation

Right Angle

Seri

DF13
