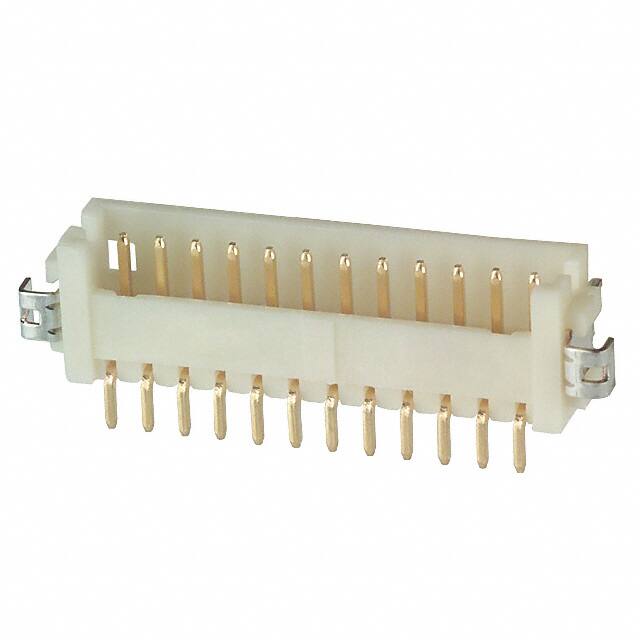

DF13A-12P-1.25H(51)

Teknik Özellikler

Orientation

Right Angle

Insertion Forcemax

3.0024 N

Contact Finish Thickness Mating

8.00μin 0.203μm

Seri

DF13

Ambalaj

Tape & Reel (TR)

Contact Gender

Male

Fastening Type

Detent Lock

Özellikler

Solder Retention

Uzunluk

19.65mm

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e4

Pozisyon Sayısı

12

Contact Type

Male Pin

Reliability

COMMERCIAL

Mixed Contacts

NO

Durability

50 Cycles

Mil Conformance

NO

Insulation Color

Beige

Style

Board to Cable/Wire

Number Of Conductors

ONE

Montaj Tipi

Surface Mount, Right Angle

Mating Contact Pitch

0.049 inch

Insulation Materials

Polyamide (PA), Nylon

Filter Feature

NO

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE

Radyasyon Dayanımı

No

Number Of Pcb Rows

1

Akım Değeri

1A

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz

Lead Free

Reference Standard

UL

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Insulation Resistance

500000000Ohm

Additional Feature

LOW PROFILE

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1
