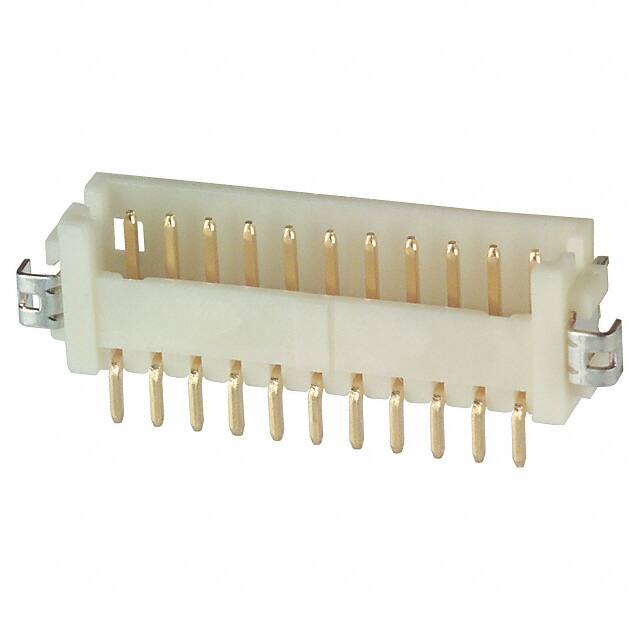

DF13A-11P-1.25H(21)

Teknik Özellikler

Fastening Type

Detent Lock

Ambalaj

Tape & Reel (TR)

Contact Gender

Male

Seri

DF13

Orientation

Right Angle

Insertion Forcemax

3.0024 N

Contact Type

Male Pin

Pozisyon Sayısı

11

JESD-609 Kodu

e3

Material Flammability Rating

UL94 V-0

Özellikler

Solder Retention

Number Of Conductors

ONE

Mating Contact Pitch

0.049 inch

Montaj Tipi

Surface Mount, Right Angle

Insulation Color

Beige

Mil Conformance

NO

Style

Board to Cable/Wire

Durability

50 Cycles

Mixed Contacts

NO

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon

Filter Feature

NO

Reference Standard

UL

Nominal Gerilim

150V

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

1A

Kurşunsuz

Lead Free

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Mounting Option1

LOCKING

Din Conformance

NO

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Housing Material

Polyamide

Insulation Resistance

500MOhm
