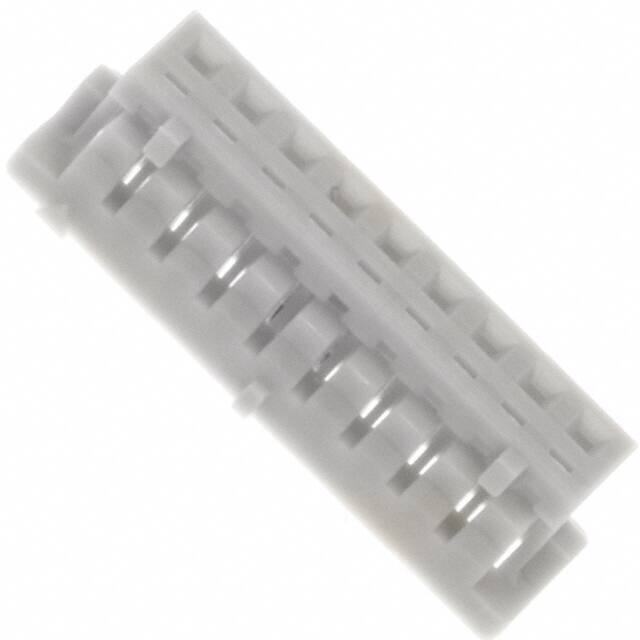

DF13-9S-1.25C

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Operating Temperature Min

-35°C

Kurşunsuz Kodu

yes

Parça Durumu

Active

Rated Current Signal

1A

Connector Type

Receptacle

Filter Feature

NO

Dielectric Withstanding Voltage

500VAC V

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Number Of Contacts

9

Mil Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Contact Finish Mating

TIN/GOLD

Reliability

COMMERCIAL

Mixed Contacts

NO

Sıra Sayısı

1

JESD-609 Kodu

e3/e4

Contact Materials

PHOSPHOR COPPER

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Pitch

0.049 1.25mm

Renk

Beige

Mounting Option1

LOCKING

Contact Type

Female Socket

Contact Termination

Crimp

RoHS Durumu

RoHS Compliant

Operating Temperature Max

85°C

Housing Material

Polyamide

Insulation Resistance

500000000Ohm

Ambalaj

Bulk

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

11 Weeks

Note

Contacts Not Included

Reference Standard

UL

Insertion Forcemax

3.0024 N

Option

GENERAL PURPOSE

Orientation

Straight

Seri

DF13
