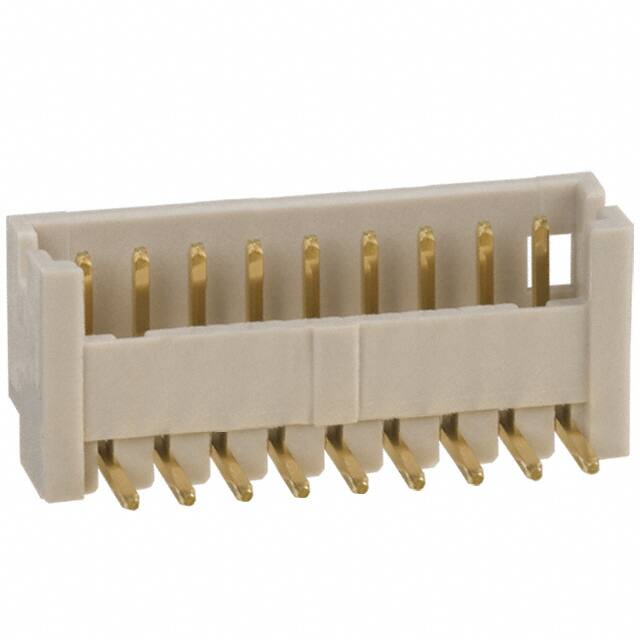

DF13-9P-1.25DS(20)

Teknik Özellikler

Contact Shape

Square

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

50 Cycles

Style

Board to Cable/Wire

Mil Conformance

NO

Montaj Tipi

Through Hole, Right Angle

Number Of Conductors

ONE

Reliability

COMMERCIAL

Mixed Contacts

NO

Lead Pitch

1.25mm

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Pozisyon Sayısı

9

Yükseklik

3.6mm

Contact Type

Male Pin

Uzunluk

12.9mm

Ambalaj

Tube

Contact Gender

Male

Fastening Type

Detent Lock

Contact Finish Thickness Mating

39.4μin 1.00μm

Insertion Forcemax

3.0024 N

Orientation

Right Angle

Seri

DF13

Contact Length Post

0.091 2.30mm

Number Of Positions Loaded

All

Pitch Mating

0.049 1.25mm

Shrouding

Shrouded - 4 Wall

Kurşunsuz Kodu

yes

Parça Durumu

Active

Connector Type

Header

Contact Resistance

30mOhm

Terminal

Solder

Iec Conformance

NO

Contact Finish Mating

Tin

Housing Color

Beige

Çalışma Sıcaklığı

-35°C~85°C

Insulation Height

0.142 3.60mm

Sıra Sayısı

1
