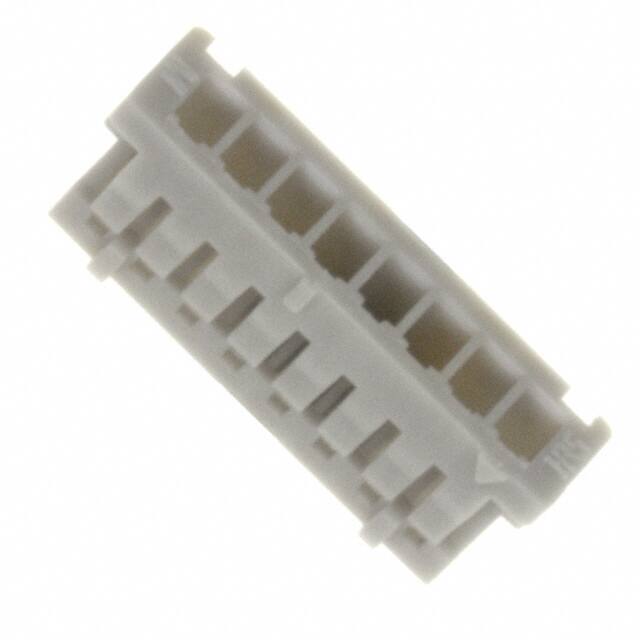

DF13-8S-1.25C

Teknik Özellikler

Mounting Option1

LOCKING

Contact Type

Female Socket

Din Conformance

NO

Pitch

0.049 1.25mm

Renk

Beige

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

PHOSPHOR BRONZE

Pozisyon Sayısı

8

ECCN Kodu

EAR99

JESD-609 Kodu

e3/e4

Sıra Sayısı

1

Voltage Rated Ac

150V

Insulation Resistance

500MOhm

Housing Material

Polyamide

RoHS Durumu

RoHS Compliant

Contact Termination

Crimp

Ul Flammability Code

94V-0

Reference Standard

UL

Withdrawl Forcemin

0.3 N

Note

Contacts Not Included

Fabrika Tedarik Süresi

12 Weeks

Akım Değeri

1A

Kurşunsuz

Lead Free

Ambalaj

Bulk

Seri

DF13

Orientation

Straight

Option

GENERAL PURPOSE

Insertion Forcemax

3 N

Operating Temperature Min

-35°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

500VAC V

Contact Resistance

30mOhm

Filter Feature

NO

Rated Current Signal

1A

Connector Type

Receptacle

Parça Durumu

Active

Kurşunsuz Kodu

yes

Number Of Conductors

ONE

Body Length Or Diameter

0.459 inch

Montaj Tipi

Free Hanging (In-Line)
