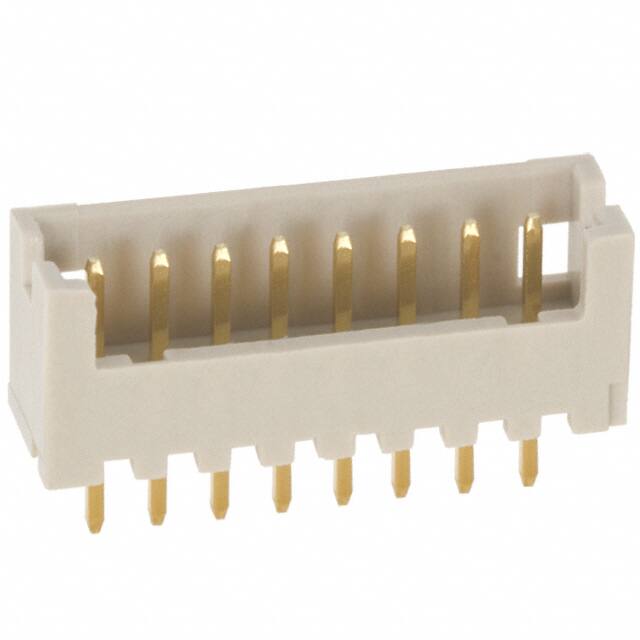

DF13-8P-1.25H(21)

Teknik Özellikler

Mil Conformance

NO

Insulation Color

Beige

Style

Board to Cable/Wire

Number Of Conductors

ONE

Montaj Tipi

Surface Mount, Right Angle

Mating Contact Pitch

0.049 inch

Durability

30 Cycles

Reliability

COMMERCIAL

Mixed Contacts

NO

Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polyamide (PA), Nylon

Filter Feature

NO

Contact Shape

Square

Rated Current Signal

1A

Fastening Type

Detent Lock

Ambalaj

Tape & Reel (TR)

Contact Gender

Male

Seri

DF13

Insertion Forcemax

3.0024 N

Contact Type

Male Pin

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e2

Pozisyon Sayısı

8

Özellikler

Board Guide, Solder Retention

Body Length Or Diameter

0.577 inch

Total Number Of Contacts

8

Terminal

Solder

Iec Conformance

NO

Contact Finish Mating

Tin

Polarization Key

GUIDE SLOT(S)

Insulation Height

0.142 3.60mm

Çalışma Sıcaklığı

-35°C~85°C

Shrouding

Shrouded - 4 Wall

Number Of Positions Loaded

All

Pitch Mating

0.049 1.25mm

Contact Resistance

30mOhm

Dielectric Withstanding Voltage

500VAC V

Parça Durumu

Active

Kurşunsuz Kodu

yes
