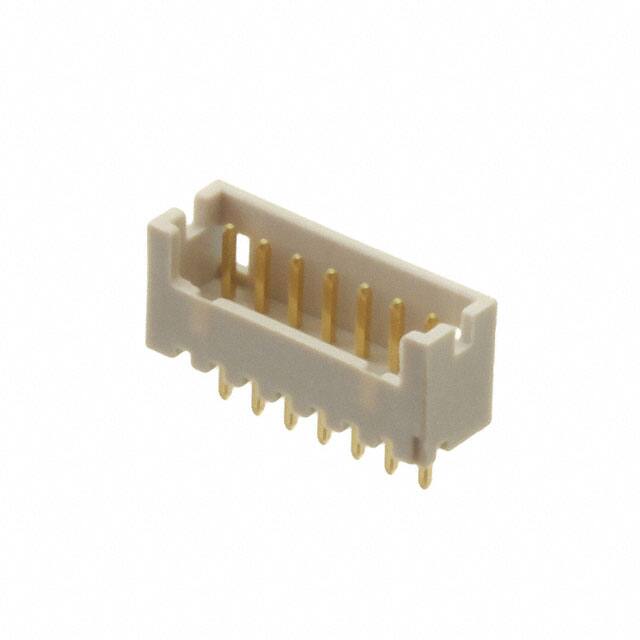

DF13-7P-1.25DSA

Teknik Özellikler

Contact Shape

Square

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

50 Cycles

Style

Board to Cable/Wire

Mil Conformance

NO

Mating Contact Pitch

0.049 inch

Montaj Tipi

Through Hole

Number Of Conductors

ONE

Reliability

COMMERCIAL

Mixed Contacts

NO

Lead Pitch

1.25mm

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

JESD-609 Kodu

e3/e4

Pozisyon Sayısı

7

Yükseklik

4.3mm

Contact Type

Male Pin

Uzunluk

10.4mm

Contact Gender

Male

Ambalaj

Bulk

Fastening Type

Detent Lock

Contact Finish Thickness Mating

39.4μin 1.00μm

Insertion Forcemax

3.0024 N

Orientation

Straight

Seri

DF13

Contact Length Post

0.091 2.30mm

Number Of Positions Loaded

All

Pitch Mating

0.049 1.25mm

Max Voltage Rating Ac

150V

Shrouding

Shrouded - 4 Wall

Kurşunsuz Kodu

yes

Parça Durumu

Active

Connector Type

Header

Contact Resistance

30mOhm

Terminal

Solder

Iec Conformance

NO

Max Current Rating

1A

Housing Color

Beige
