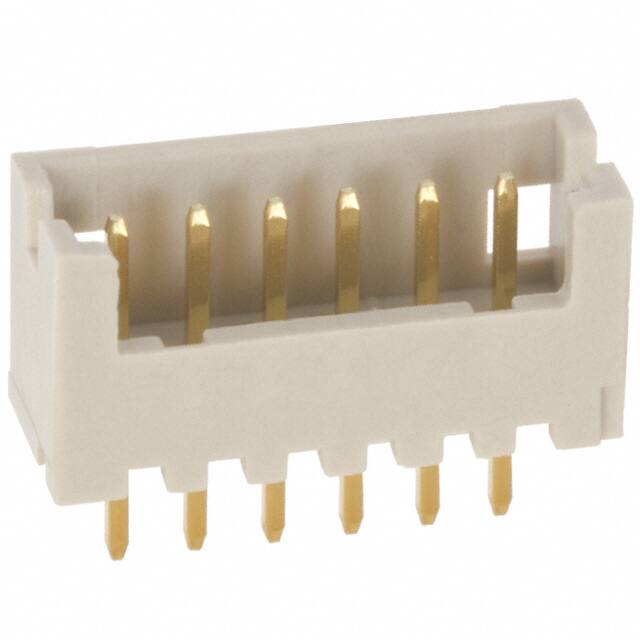

DF13-6P-1.25DSA

Teknik Özellikler

Depth

3.4mm

Insulation Height

0.169 4.30mm

Çalışma Sıcaklığı

-35°C~85°C

Max Current Rating

1A

Housing Color

Beige

Contact Finish Mating

Tin

Iec Conformance

NO

Terminal

Solder

Contact Resistance

30mOhm

Connector Type

Header

Kurşunsuz Kodu

yes

Parça Durumu

Active

Max Voltage Rating Ac

150V

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.049 1.25mm

Contact Length Post

0.091 2.30mm

Number Of Positions Loaded

All

Number Of Pcb Rows

1

Montaj

Through Hole

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Reference Standard

UL

Kurşunsuz

Lead Free

Akım Değeri

1A

Fabrika Tedarik Süresi

12 Weeks

Additional Feature

LOW PROFILE

Housing Material

Polyamide

Insulation Resistance

500000000Ohm

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Din Conformance

NO

Stack Height Mating

5.3mm

Contact Materials

Brass

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Lead Pitch

1.25mm

Mixed Contacts

NO

Reliability

COMMERCIAL

Montaj Tipi

Through Hole

Mating Contact Pitch

0.049 inch
