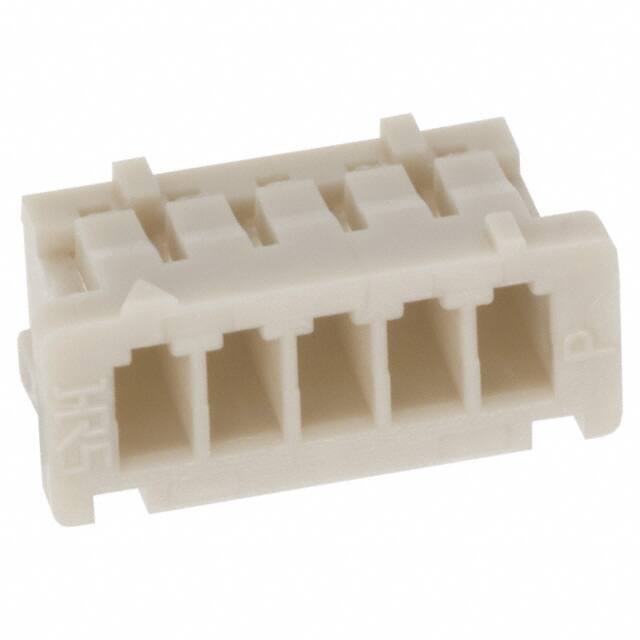

DF13-5S-1.25C

Teknik Özellikler

Mil Conformance

NO

Number Of Contacts

5

Number Of Conductors

ONE

Montaj Tipi

Free Hanging (In-Line)

Iec Conformance

NO

Durability

30 Cycles

Lead Pitch

1.25mm

Reliability

COMMERCIAL

Contact Finish Mating

NOT SPECIFIED

Mixed Contacts

NO

REACH Uyumluluk Kodu

unknown

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Kurşunsuz Kodu

yes

Filter Feature

NO

Connector Type

Receptacle

Rated Current Signal

1A

Fabrika Tedarik Süresi

12 Weeks

Kurşunsuz

Lead Free

Withdrawl Forcemin

0.3 N

Reference Standard

UL

Note

Contacts Not Included

Ambalaj

Bulk

Seri

DF13

Orientation

Straight

Option

GENERAL PURPOSE

Insertion Forcemax

3 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Mounting Option1

LOCKING

Contact Type

Female Socket

Renk

Beige

Pitch

0.049 1.25mm

Din Conformance

NO

ECCN Kodu

EAR99

Sıra Sayısı

1

Contact Materials

NOT SPECIFIED

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Ul Flammability Code

94V-0
