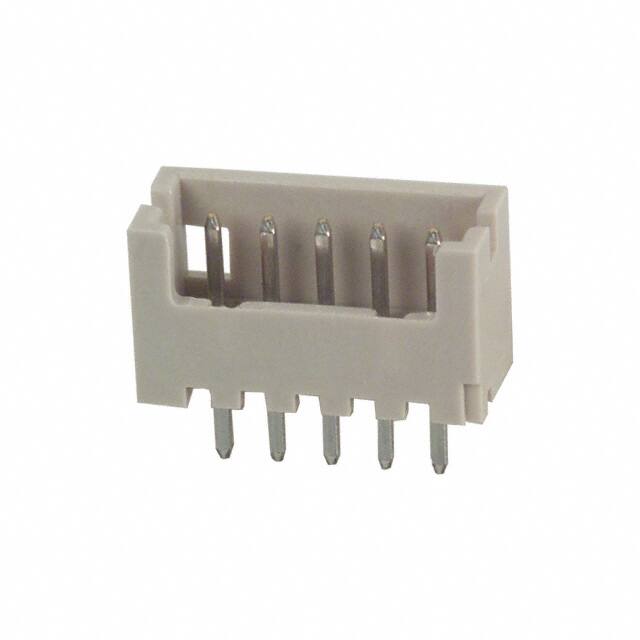

DF13-5P-1.25DS(20)

Teknik Özellikler

Additional Feature

LOW PROFILE

Housing Material

Plastic

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Length Termination

0.09 inch

Din Conformance

NO

Mounting Option1

LOCKING

Contact Materials

Brass

Current Rating Amps

1A

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Nominal Gerilim

150V

Reference Standard

UL

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

11 Weeks

Contact Resistance

30mOhm

Connector Type

Header

Kurşunsuz Kodu

yes

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.049 1.25mm

Contact Length Post

0.091 2.30mm

Number Of Positions Loaded

All

Insulation Height

0.142 3.60mm

Çalışma Sıcaklığı

-35°C~85°C

Contact Finish Mating

Tin

Iec Conformance

NO

Terminal

Solder

Contact Type

Male Pin

Pozisyon Sayısı

5

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

ECCN Kodu

EAR99

Seri

DF13

Insertion Forcemax

3.0024 N

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Gender

Male
