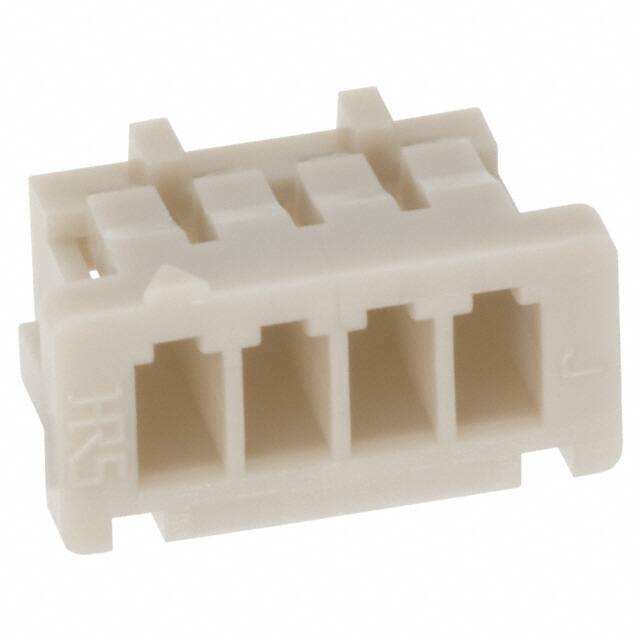

DF13-4S-1.25C

Teknik Özellikler

Contact Type

Female Socket

Mounting Option1

LOCKING

Din Conformance

NO

Pitch

0.049 1.25mm

Renk

Beige

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

PHOSPHOR COPPER

Pozisyon Sayısı

4

Sıra Sayısı

1

Voltage Rated Ac

150V

Housing Material

Polyamide

Insulation Resistance

500MOhm

Operating Temperature Max

85°C

RoHS Durumu

RoHS Compliant

Contact Termination

Crimp

Reference Standard

UL

Withdrawl Forcemin

0.3 N

Note

Contacts Not Included

Akım Değeri

1A

Fabrika Tedarik Süresi

12 Weeks

Kurşunsuz

Lead Free

Ambalaj

Bulk

Seri

DF13

Orientation

Straight

Option

GENERAL PURPOSE

Insertion Forcemax

3 N

Operating Temperature Min

-35°C

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

500VAC V

Contact Resistance

30mOhm

Filter Feature

NO

Rated Current Signal

1A

Connector Type

Receptacle

Parça Durumu

Active

Kurşunsuz Kodu

yes

Number Of Conductors

ONE

Body Length Or Diameter

0.262 inch

Montaj Tipi

Free Hanging (In-Line)

Mil Conformance

NO
