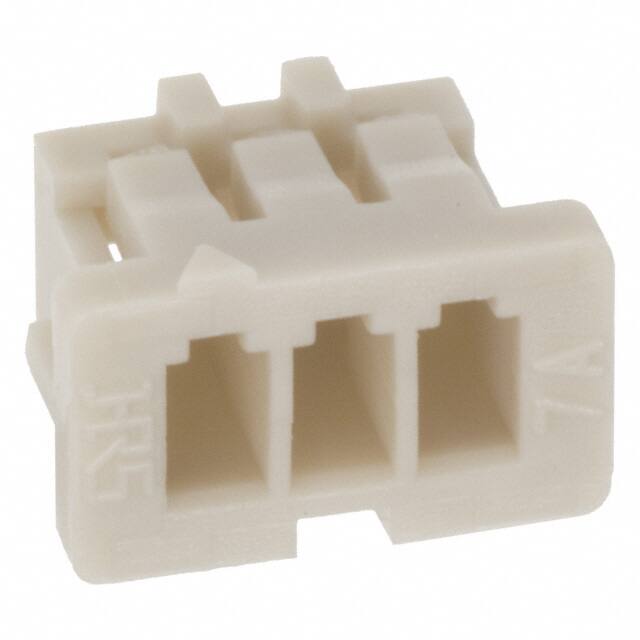

DF13-3S-1.25C

Teknik Özellikler

Reference Standard

UL

Note

Contacts Not Included

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz

Lead Free

Ambalaj

Bulk

Seri

DF13

Option

GENERAL PURPOSE

Orientation

Straight

Contact Type

Female Socket

Mounting Option1

LOCKING

Renk

Beige

Pitch

0.049 1.25mm

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

PHOSPHOR COPPER

ECCN Kodu

EAR99

Sıra Sayısı

1

Insulation Resistance

500000000Ohm

Housing Material

Polyamide

Operating Temperature Max

85°C

RoHS Durumu

RoHS Compliant

Contact Termination

Crimp

Ul Flammability Code

94V-0

Montaj Tipi

Free Hanging (In-Line)

Mil Conformance

NO

Number Of Contacts

3

Iec Conformance

NO

Lead Pitch

1.25mm

Mixed Contacts

NO

Reliability

COMMERCIAL

Contact Finish Mating

TIN/GOLD

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

500VAC V

Filter Feature

NO

Connector Type

Receptacle

Rated Current Signal

1A

Parça Durumu

Active

Kurşunsuz Kodu

yes
