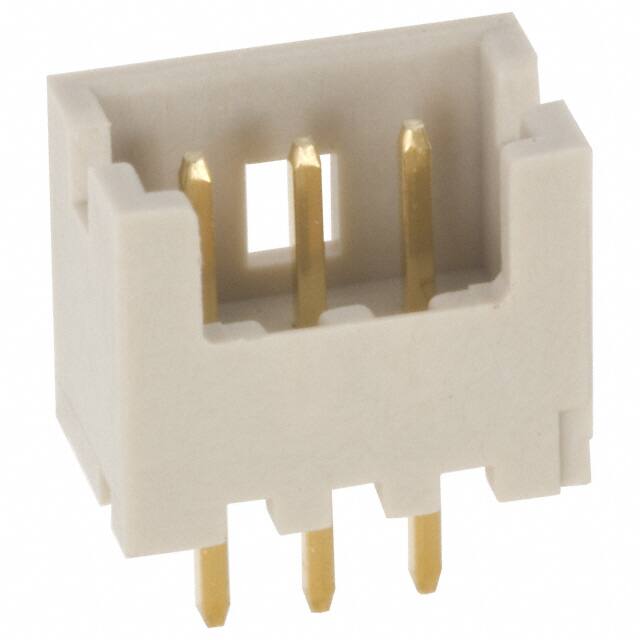

DF13-3P-1.25DS(20)

Teknik Özellikler

Pitch Mating

0.049 1.25mm

Number Of Positions Loaded

All

Contact Length Post

0.091 2.30mm

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Parça Durumu

Active

Kurşunsuz Kodu

yes

Iec Conformance

NO

Terminal

Solder

Insulation Height

0.142 3.60mm

Çalışma Sıcaklığı

-35°C~85°C

Contact Finish Mating

Tin

Current Rating Amps

1A

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Mounting Option1

LOCKING

Din Conformance

NO

Length Termination

0.09 inch

Ul Flammability Code

94V-0

Housing Material

Plastic

Insulation Resistance

500000000Ohm

Additional Feature

LOW PROFILE

RoHS Durumu

RoHS Compliant

Reference Standard

UL

Nominal Gerilim

150V

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz

Lead Free

Option

GENERAL PURPOSE

Number Of Pcb Rows

1

REACH Uyumluluk Kodu

unknown

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

50 Cycles

Number Of Conductors

ONE

Mating Contact Pitch

0.049 inch

Montaj Tipi

Through Hole, Right Angle

Mil Conformance

NO
