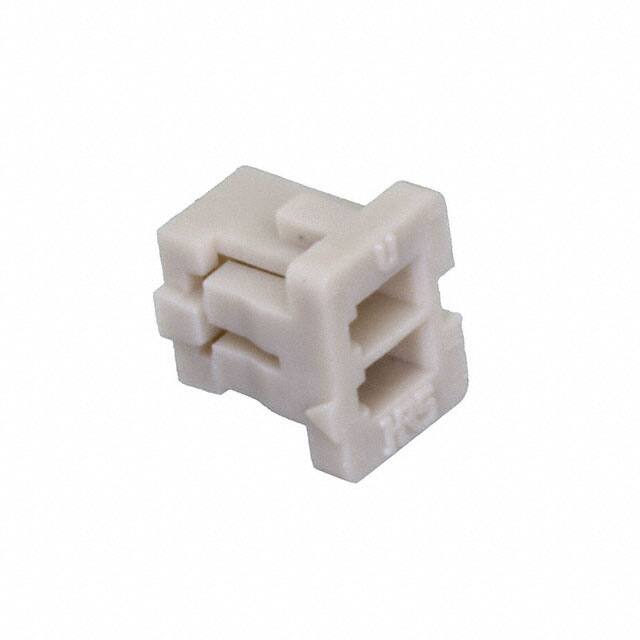

DF13-2S-1.25C

Teknik Özellikler

Kurşunsuz Kodu

yes

Parça Durumu

Active

Rated Current Signal

1A

Connector Type

Receptacle

Filter Feature

NO

Dielectric Withstanding Voltage

500VAC V

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-35°C

Contact Finish Mating

TIN

Reliability

COMMERCIAL

Mixed Contacts

NO

Lead Pitch

1.25mm

Iec Conformance

NO

Durability

30 Cycles

Number Of Contacts

2

Mil Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Number Of Conductors

ONE

Contact Termination

Crimp

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Operating Temperature Max

85°C

Insulation Resistance

500000000Ohm

Housing Material

Polyamide

Sıra Sayısı

1

ECCN Kodu

EAR99

JESD-609 Kodu

e3/e4

Contact Materials

PHOSPHOR COPPER

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Renk

Beige

Pitch

0.049 1.25mm

Din Conformance

NO

Contact Type

Female Socket

Mounting Option1

LOCKING

Insertion Forcemax

3 N

Orientation

Straight

Option

GENERAL PURPOSE

Seri

DF13

Ambalaj

Bulk
