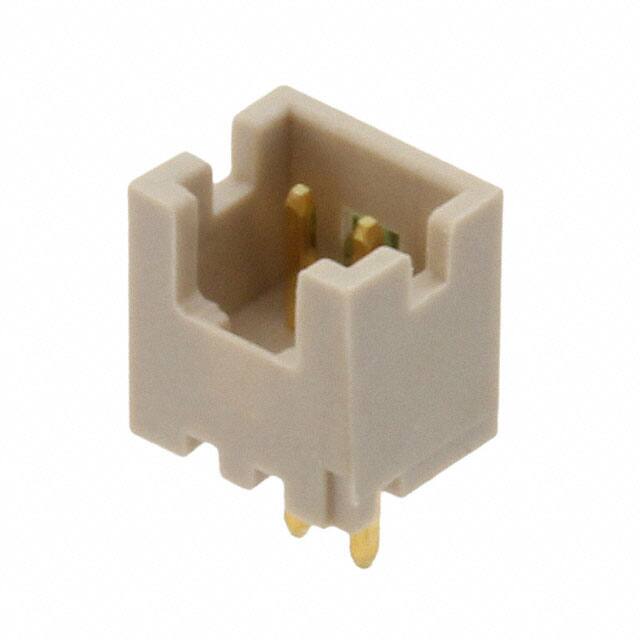

DF13-2P-1.25DSA

Teknik Özellikler

Contact Materials

Brass

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Stack Height Mating

5.3mm

Ul Flammability Code

94V-0

Additional Feature

LOW PROFILE

Housing Material

Polyamide

Insulation Resistance

500000000Ohm

RoHS Durumu

RoHS Compliant

HTS Kodu

8536.69.40.40

Reference Standard

UL

Kurşunsuz

Lead Free

Akım Değeri

1A

Fabrika Tedarik Süresi

11 Weeks

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Number Of Pcb Rows

1

Montaj

Through Hole

Pitch Mating

0.049 1.25mm

Contact Length Post

0.091 2.30mm

Number Of Positions Loaded

All

Max Voltage Rating Ac

150V

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Kurşunsuz Kodu

yes

Parça Durumu

Active

Contact Resistance

30mOhm

Iec Conformance

NO

Terminal

Solder

Depth

3.4mm

Insulation Height

0.169 4.30mm

Çalışma Sıcaklığı

-35°C~85°C

Max Current Rating

1A

Housing Color

Beige

Contact Finish Mating

Tin

Pozisyon Sayısı

2

ECCN Kodu

EAR99

JESD-609 Kodu

e3

Material Flammability Rating

UL94 V-0
